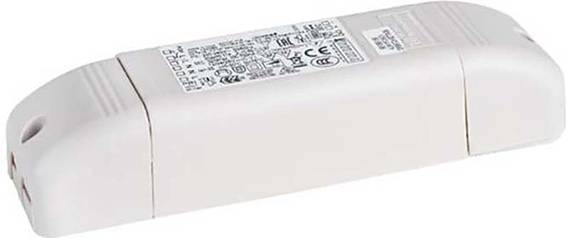

Brumberg 17748010 LED converter 32 W 700 mA 46 V dimmable
EAN:
Part number:
Item no:
Product type
LED converter
Power
32 W
Connection
Clamp
Output current (max.) - rounded
700 mA
Output voltage (max.)
46 V
Datasheet (PDF)
Technical specifications
- Output power 1..32 W
- Dimming 1-10 V: no.
- Dimming DALI: no.
- DMX dimming: no.
- Dimming Phase section: Yes
- Dimming RF: no.
- Dimming Zigbee: no.
- Suitable for outdoor use: no.
- Protection class: II
- Type
dynamic
- Product type
LED converter
- Operating voltage
230 V AC
32 W
- LED features
dimmable
- Connection
Clamp
IP20
- Dim
(L x W x H) 166 x 46 x 34 mm
- Max. output current
700 mA
- Output current (max.) - rounded
700 mA
- Height
34 mm
- Length
166 mm
- Width
46 mm
- Material (details)
Plastic housing
- Output current (min.)
700 mA
- Output voltage (max.)
46 V
- Output voltage (min.)
2 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2293750 Brumberg 17748010 LED converter 32 W 700 mA 46 V dimmable
User & Safety Instructions
User & Safety Instructions 2293750 Brumberg 17748010 LED converter 32 W 700 mA 46 V dimmable
Description
LED converter 700 mA, phase section dimmable. This device fulfills the requirements for safety lighting systems according to DIN EN 50172 VDE 0108-100:2005-01. This converter is protected against overvoltage and short-circuit by safety devices as well as thermal and electrical overload. The input and output terminals are suitable for cables with a cross-section of up to 1.5 mm², material: Plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) II, current: 700 mA, voltage: 230V AC 50Hz, power: 1.4-32W, type of dimming: Phase section,
