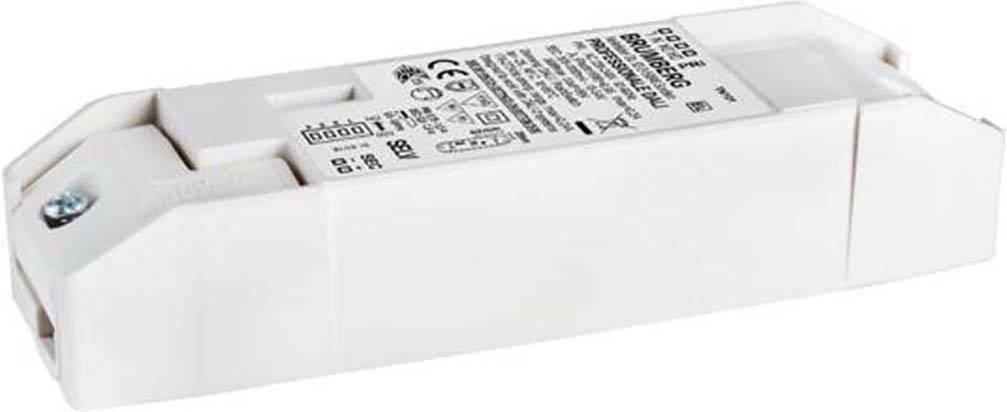

Brumberg 17836010 LED converter 38 W 1000 mA 38 V dimmable
EAN:
Part number:
Item no:
Product type
LED converter
Power
38 W
Connection
Clamp
Output current (max.) - rounded
1 A
Output voltage (max.)
38 V
Datasheet (PDF)
Technical specifications
- Output power 10..38 W.
- Dimming 1-10 V: no.
- Dimming DALI: Yes
- DMX dimming: no.
- Phase section dimming: no.
- Dimming RF: no.
- Dimming Zigbee: no.
- Suitable for outdoor use: no.
- Suitable for constant voltage: no.
- Suitable for constant current: Yes
- Protection class: II
- Type
dynamic
- Product type
LED converter
- Operating voltage
230 V AC
38 W
- LED features
dimmable
- Connection
Clamp
IP20
- Dim
(L x W x H) 146 x 44 x 30 mm
- Max. output current
1000 mA
- Output current (max.) - rounded
1 A
- Height
30 mm
- Length
146 mm
- Width
44 mm
- Material (details)
Plastic housing
- Output current (min.)
1000 mA
- Output voltage (max.)
38 V
- Output voltage (min.)
10 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2291278 Brumberg 17836010 LED converter 38 W 1000 mA 38 V dimmable
User & Safety Instructions
User & Safety Instructions 2291278 Brumberg 17836010 LED converter 38 W 1000 mA 38 V dimmable
Description
LED converter 1,000 mA, DALI dimmable (digital). This device fulfills the requirements for safety lighting systems according to DIN EN 50172 VDE 0108-100:2005-01. This converter is protected against overvoltage and short-circuit by safety devices as well as thermal and electrical overload. The input and output terminals are suitable for cables with a cross-section of 0.75-1.5 mm². Material: Plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) II, current: 1,000 mA, voltage: 230V AC 50Hz, power: 10-38W, type of dimming: DALI,
