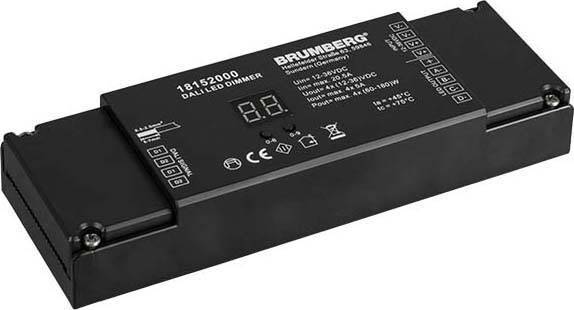

Brumberg 18152000 LED dimmer 240 W 2.5 A 24 V dimmable
EAN:
Part number:
Item no:
Product type
LED dimmer
Power
240 W
Output current (max.) - rounded
2.5 A
Output voltage (max.)
24 V
Type
dynamic
Datasheet (PDF)
Technical specifications
- Output power 24..240 W
- Dimming 1-10 V: no.
- Dimming DALI: Yes
- DMX dimming: no.
- Phase section dimming: no.
- Dimming RF: no.
- Dimming Zigbee: no.
- Suitable for outdoor use: no.
- Suitable for direct voltage (primary side): Yes
- Suitable for constant voltage: Yes
- Suitable for constant current: no.
- Protection class: II
- Type
dynamic
- Product type
LED dimmer
240 W
- LED features
dimmable
IP20
- Dim
(L x W x H) 170 x 54 x 30 mm
- Max. output current
2.5 A
- Output current (max.) - rounded
2.5 A
- Height
30 mm
- Length
170 mm
- Width
54 mm
- Material (details)
Plastic housing
- Output voltage (max.)
24 V
- Output voltage (min.)
12 V
- Protection class
III
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2291547 Brumberg 18152000 LED dimmer 240 W 2.5 A 24 V dimmable
User & Safety Instructions
User & Safety Instructions 2291547 Brumberg 18152000 LED dimmer 240 W 2.5 A 24 V dimmable
Description
LED dimmer 12-24 V DC, dimmable. LED dimmer series for constant voltage operation (12-24 V DC) via 4 channels (single or multi-color). The cabling is done without screws via plug-in terminals. Cable cross-section 0.5-2.5 mm². An external power supply is required for operation, output signal (dimming): PWM (pulse width modulation), with polarity reversal and over temperature protection. Max. Output current 4 x 2.5 A. Max. Output power 4 x 30 W (12 V), 4 x 60 W (24 V) 18152000: 1-4 channel device with 1-4 addresses (DALI). The channels (outputs) can be combined to 1, 2, 3 or 4 addresses. As an alternative to DALI, the 4 channels (outputs) can be controlled simultaneously, i.e. all four channels behave the same, via a button (dimmed) (push dimm, switch dimm). Socket: Without, material: Plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) III, voltage: 12V 24V, power: 24-240W,
