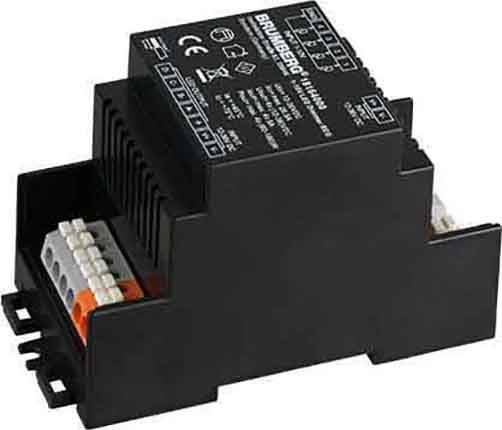

Brumberg 18164000 LED dimmer 240 W 0.25 A 24 V dimmable
EAN:
Part number:
Item no:
Product type
LED dimmer
Power
240 W
Connection
Push-in connector
Output current (max.) - rounded
250 mA
Output voltage (max.)
24 V
Datasheet (PDF)
Technical specifications
- Output power 24..240 W
- Dimming 1-10 V: Yes
- Dimming DALI: no.
- DMX dimming: no.
- Phase section dimming: no.
- Dimming RF: no.
- Dimming Zigbee: no.
- Suitable for outdoor use: no.
- Suitable for direct voltage (primary side): Yes
- Suitable for constant voltage: Yes
- Suitable for constant current: no.
- Protection class III
- Type
dynamic
- Product type
LED dimmer
240 W
- LED features
dimmable
- Connection
Push-in connector
IP20
- Dim
(L x W x H) 54 x 110 x 66 mm
- Max. output current
0.25 A
- Output current (max.) - rounded
250 mA
- Height
66 mm
- Length
54 mm
- Width
110 mm
- Material (details)
Plastic housing
- Output voltage (max.)
24 V
- Output voltage (min.)
12 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2293154 Brumberg 18164000 LED dimmer 240 W 0.25 A 24 V dimmable
User & Safety Instructions
User & Safety Instructions 2293154 Brumberg 18164000 LED dimmer 240 W 0.25 A 24 V dimmable
Description
REG LED dimmer 12-24 V DC, dimmable. LED dimmer series for constant voltage operation (12-24 V DC) via 4 channels (single or multi-color). The cabling is done without screws via plug-in terminals. Cable cross-section 0.5-2.5 mm². An external power supply is required for operation, output signal (dimming): PWM (pulse width modulation), with polarity reversal and over temperature protection. Max. Output current 4 x .25 A. Max. Output power 4 x 30 W (12 V), 4 x 60 W (24 V). 18164000: 1-4 channel device with max. 4 x 1-10 V inputs. The inputs can be combined (L 54 x W 110 x H 66 mm, 3 TE). Socket: Without, material: Plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) III, voltage: 12V 24V, power: 24-240W,
