Brumberg 18196000 LED remote control 20 m 152 mm 52 mm 19 mm
EAN:
Part number:
Item no:
Product type
LED remote control
Type
18196000
Channels
4
Range
20 m
Dim
(L x W x H) 152 x 52 x 19 mm
Datasheet (PDF)
Technical specifications
- Protection class: IP20
- Capable of learning: Yes
- Max. Number of controllable units: 4
- Pre-programd: Yes
- Type
18196000
- Product type
LED remote control
- Channels
4
- Range
20 m
- Dim
(L x W x H) 152 x 52 x 19 mm
- Width
52 mm
- Height
19 mm
- Length
152 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2291276 Brumberg 18196000 LED remote control 20 m 152 mm 52 mm 19 mm
User & Safety Instructions
User & Safety Instructions 2291276 Brumberg 18196000 LED remote control 20 m 152 mm 52 mm 19 mm
Description

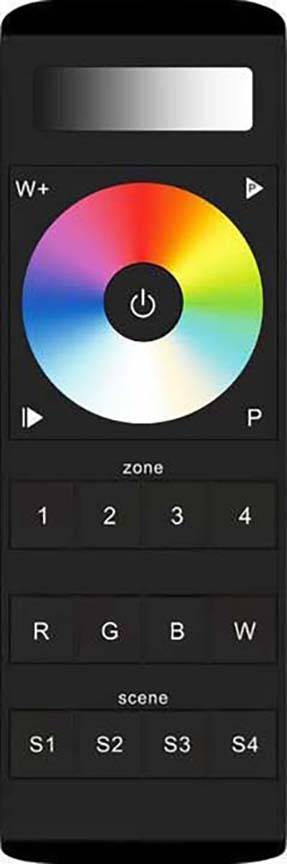

RGBW wireless remote control for 18192000. RGBW wireless remote control for controlling RGBW LED modules for color and white light. Voltage (battery): 4.5 V DC / 3 x AAA (not included), Radio frequency: 869.5 MHz, Transmission power (PS) < 0 dBm, Range (line of sight): Up to 20 m, Ambient temperature (ta): 0° C to +40° C, Dimensions: L 152 x W 52 x H 19 mm, Material: Plastic, Delivery: Incl. wall bracket Features: - on / off - RGBW color change via Touchwheel - White light selection key (ww / nw / w) - Dimming keys for red / green / blue / white - Color gradient: Start / stop - Color gradient: Speed - Dimming of the set light color via touchpanel - Memory key S1 to S4 - Controller selection keys for zone 1 to 4 compatible with radio master controller 18192000, further functions can be found in the product description. Protection class: According to DIN EN 60529: IP20,
