Brumberg 18197000 LED remote control 20 m 140 mm 48 mm 17 mm
EAN:
Part number:
Item no:
Product type
LED remote control
Operating voltage
4.5 V DC
Type
18197000
Channels
6
Range
20 m
Datasheet (PDF)
Technical specifications
- Protection class: IP20
- Capable of learning: Yes
- Max. Number of controllable units: 6
- Pre-programd: Yes
- Type
18197000
- Product type
LED remote control
- Operating voltage
4.5 V DC
- Channels
6
- Range
20 m
- FM band (max.)
869.5 MHz
- Dim
(L x W x H) 140 x 48 x 17 mm
- Width
48 mm
- Height
17 mm
- Length
140 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2291559 Brumberg 18197000 LED remote control 20 m 140 mm 48 mm 17 mm
User & Safety Instructions
User & Safety Instructions 2291559 Brumberg 18197000 LED remote control 20 m 140 mm 48 mm 17 mm
Description

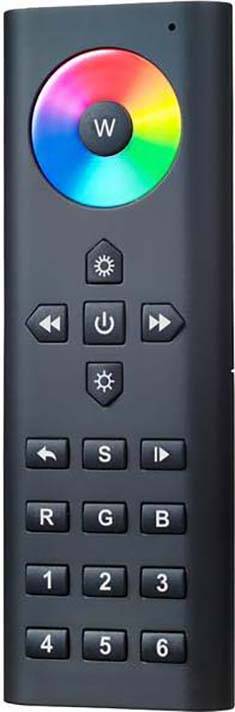

RGB wireless remote control for 18192000. RGB wireless remote control for controlling RGB LED modules in the color light range. Voltage (battery): 4.5 V DC / 3 x AAA (not included), Radio frequency: 869.5 MHz, Transmission power (PS) < 0 dBm, Range (line of sight): Up to 20 m, Ambient temperature (ta): 0° C to +40° C, Dimensions: L 140 x W 48 x H 17 mm, Material: Plastic, Delivery: Incl. wall bracket Range of functions: - on / off - RGB color change via Touchwheel - Dimming keys for red / green / blue - Gradient: Start / stop - Gradient: Speed - Dimming of the set light color - Memory key S - Controller selection keys for zone 1 to 6 compatible with radio master controller 18192000, for further functions please refer to the product description, protection class: According to DIN EN 60529: IP20,
