Brumberg 18199000 LED remote control 20 m 140 mm 48 mm 17 mm
EAN:
Part number:
Item no:
Product type
LED remote control
Operating voltage
4.5 V DC
Type
18199000
Channels
6
Range
20 m
Datasheet (PDF)
Technical specifications
- Protection class: IP20
- Capable of learning: Yes
- Max. Number of controllable units: 6
- Pre-programd: Yes
- Type
18199000
- Product type
LED remote control
- Operating voltage
4.5 V DC
- Channels
6
- Range
20 m
- FM band (max.)
869.5 MHz
- Dim
(L x W x H) 140 x 48 x 17 mm
- Width
48 mm
- Height
17 mm
- Length
140 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2292597 Brumberg 18199000 LED remote control 20 m 140 mm 48 mm 17 mm
User & Safety Instructions
User & Safety Instructions 2292597 Brumberg 18199000 LED remote control 20 m 140 mm 48 mm 17 mm
Description

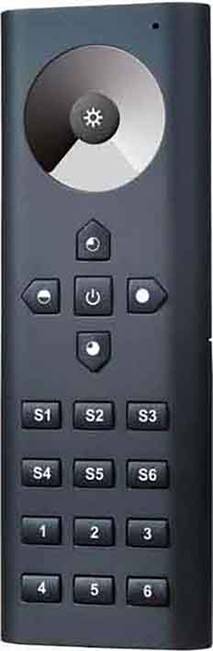

White light radio remote control for 18192000. White light wireless remote control for controlling single-color LED modules in the white light range. Voltage (battery): 4.5 V DC / 3 x AAA (not included), Radio frequency: 869.5 MHz, Transmission power (PS) < 0 dBm, Range (line of sight): Up to 20 m, Ambient temperature (ta): 0° C to +40° C, Dimensions: L 140 x W 48 x H 17 mm, Material: Plastic, delivery incl. wall bracket Function range: - On / off - Dimming via touch wheel - memory keys S1 to S6 - selection keys 25 % / 50 % / 75 % / 100 % brightness - controller selection keys for zone 1 to 6 compatible with radio master controller 18192000, further functions can be found in the product description, protection class: According to DIN EN 60529: IP20
