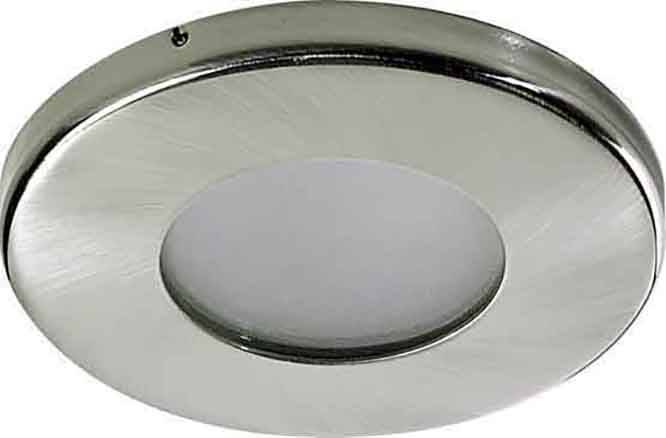

Brumberg 226422 226422 Flush mount light HV halogen GX5.3 35 W Stainless steel
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Brumberg recessed light 35W eds 00226422
- Power= 35 W White
Technical specifications
- Operating device: Electronic transformer
- Dimming depends on the operating device: Yes
- With bulb: no.
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- Lamp: Low-voltage halogen lamp
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: no.
- Voltage type: AC
- Cover material: opal glass
- Product type
Flush mount light
- Operating voltage
12 V
- No. of bulbs
1
GX5.3
- Bulb type
HV halogen
- Rating per bulb
35 W
35 W
- Colour
White
- Type
Circular
- Light features
Dimmable
- Recess diameter
64 mm
- Recess depth
50 mm
- Outside Ø
85 mm
IP65
- Protection class
III
- Factory colour
Stainless steel
- Material
Stainless steel
n.rel.
Yes
- Light bulb included
No
- Height
8 mm
Documents & Downloads
Datasheet
Datasheet 2291943 Brumberg 226422 226422 Flush mount light HV halogen GX5.3 35 W Stainless steel
User & Safety Instructions
User & Safety Instructions 2291943 Brumberg 226422 226422 Flush mount light HV halogen GX5.3 35 W Stainless steel
Description
Panel-mounted downlight IP65, stainless steel, round. Designed in a compact design for quick mounting without tools for ceiling installation. Socket: GX5.3, Mounting type: Mounting, Mounting location: Ceiling mounting, Material: Stainless steel / glass, Protection type: According to DIN EN 60529: IP65*, Protection class: (EN 61140) III, Voltage: 12V, Power: Max. 35W, Number of bulbs / sockets: 1.0 pcs, Adjustable: Not adjustable, without operating device, Type of dimming: Other,
