Brumberg 309607 Flush mount speaker 4 W White 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Active system: no.
- Bluetooth: no.
- Ethernet: no
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- Mobile High Definition Link (MHL): no.
- Nominal load 3 W
- USB port: no.
- WLAN: no
- Product type
Flush mount speaker
- Max. load
4 W
IP20
- Frequency range
150 - 20000 Hz
- Type
Round
- Factory colour
White
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2294779 Brumberg 309607 Flush mount speaker 4 W White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2294779 Brumberg 309607 Flush mount speaker 4 W White 1 pc(s)
Description

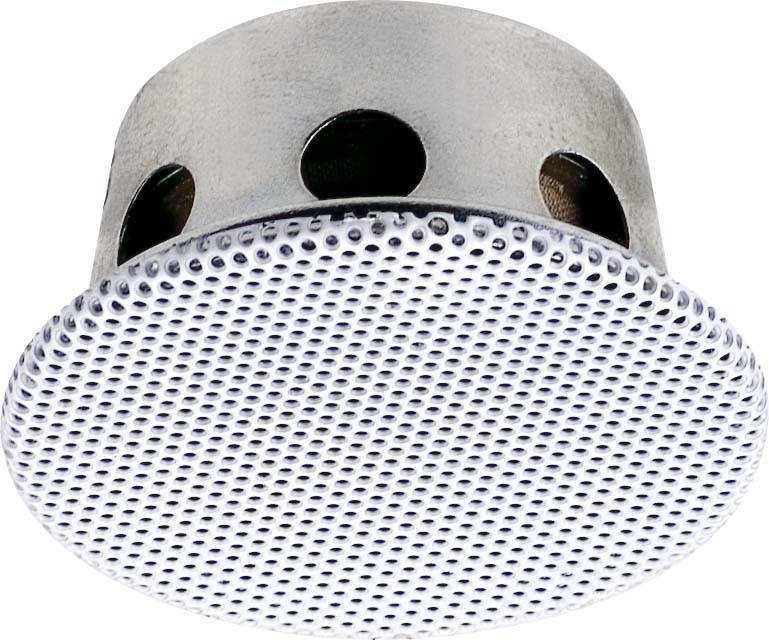

Speaker insert Ø 50 mm for panel-mounted lights, white, round. Designed in a compact design for quick mounting without tools for ceiling installation. Nominal / music load: 3 / 4 W, impedance: 20 Ohm Up to 5 loudspeakers can be connected in parallel to one channel of a hi-fi amplifier. Sound pressure level: 1 W / 1 m: 82 dB (at rated output 87 dB), transmission range (-3 db): 200 - 16,000 Hz, transmission range (-10 db): 150 - 20,000 Hz, design: Perforated plate cover white or chrome metallized, net weight: 0.06 kg Connection by 2-wire cable with connection terminal. Material: Steel can be used in most NV halogen spots for QR-CBC51. Socket: None, Mounting type: Installation mounting, Mounting location: Ceiling mounting, Material: Perforated plate, Protection type: According to DIN EN 60529: IP20,
