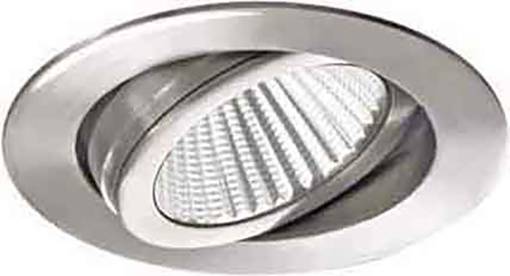

Brumberg 36147220 36147220 Flush mount light HV halogen GU10 50 W Stainless steel
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Brumberg Luminaires HV Built-in Cooler GU10 max. 50W/eds 36147220
- Power= 50 W White
Technical specifications
- Operating device: Not required
- Dimming depends on the operating device: Yes
- With bulb: no.
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- Light emission: Direct
- Light distribution: Symmetrical
- With bulb: no.
- Voltage type: AC
- Cover material: None
- Product type
Flush mount light
- Operating voltage
230 V
- No. of bulbs
1
GU10
- Bulb type
HV halogen
- Rating per bulb
50 W
50 W
- Colour
White
- Type
Circular
- Light features
Swivelling
- Recess diameter
68 mm
- Recess depth
125 mm
- Outside Ø
82 mm
IP20
- Protection class
II
- Factory colour
Stainless steel
- Material
Stainless steel
n.rel.
Yes
- Light bulb included
No
Documents & Downloads
Datasheet
Datasheet 2292721 Brumberg 36147220 36147220 Flush mount light HV halogen GU10 50 W Stainless steel
User & Safety Instructions
User & Safety Instructions 2292721 Brumberg 36147220 36147220 Flush mount light HV halogen GU10 50 W Stainless steel
Description
High-voltage mounting spotlight V4A GU10, stainless steel, round. Designed in a compact design for quick mounting without tools for ceiling installation. Incl. High-voltage clamp for standard strain relief. Socket: GU10, Type of mounting: Installation, Mounting location: Ceiling mounting, Material: Stainless steel, Protection type: According to DIN EN 60529: IP20, Protection class: (EN 61140) II, Voltage: 230V AC 50Hz, Power: Max. 50W, Number of bulbs / sockets: 1.0 pcs, Adjustable: Swivel, Type of dimming: Other,
