Brumberg 37006080 37006080 Flush mount light
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Width 86 mm
- Protection class (IP) IP54
- Surface protection: Powder-coated
- Protection class III
- Material of the housing: Stainless steel
- Length: 86 mm
- Voltage type DC
- LED bulb, replaceable
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 6 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on a panel: No.
- Suitable for panel mounting: Yes
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- Adjustable: Not adjustable
- With motion detector: No.
- With light sensor: No.
- With bulb: No.
- Suitable for the number of bulbs: 1
- Black enclosure
- Surface brushed: No.
- With operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Light distribution: Symmetric
- Light emission: Direct
- Suitable for lamp output 13 W
- Max. System power 13 W
- Installation diameter 68 mm
- Covering of the lamp with thermal insulation material is possible: No.
- Operation via Bluetooth: No.
- Cover material: Glass matt/satin
- Suitable for rail mounting: No.
- Socket: Without
- Product type
Flush mount light
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3545529 Brumberg 37006080 37006080 Flush mount light
Datasheet 3545529 Brumberg 37006080 37006080 Flush mount light
User & Safety Instructions
User & Safety Instructions 3545529 Brumberg 37006080 37006080 Flush mount light
Description

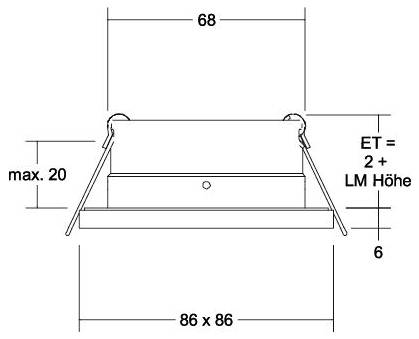

Panel-mounted downlight, V4A, IP54, without LED module, structure-black, square. Designed in a compact design for tool-free rapid assembly for ceiling mounting. All Brumberg MR16 LED modules can be used for the installation unit STEAM. The installation depth of the light depends on the LED module used (here: 2 mm, plus Height of the LED module). The LED module is not included in the scope of delivery of the mounting unit. Design: Without socket, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Stainless steel V4A / aluminum / nylon / glass, protection class: According to DIN EN 60529: IP54, protection class: (EN 61140) III, power: 13 W, number of lights / sockets: 1 pieces, adjustment: Not adjustable, without operating device, type of dimming: Dependent on operating device.
