Brumberg 39363153 39363153 LED recessed light LED (monochrome) w/o 6 W Nickel
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Brumberg Lights LED Recessed Lighting 3000K ni./matt dimm. 39363153
- Power= 6 W Total luminous flux= 640 lm White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 640 lm
- Operating device: LED operating device current-controlled
- Dimming Phase section: Yes
- Colour temperature: 3000 K
- Color rendering index CRI: 80-89
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Reflector: High gloss
- Voltage type: AC
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
6 W
6 W
640 lm
- Total luminous flux
640 lm
- Colour
White
- Radiation angle
40°
- Light features
Swivelling
- Recess diameter
68 mm
- Recess depth
36 mm
- Outside Ø
82 mm
IP20
- Protection class
II
- Factory colour
Nickel
- Material
Aluminium
n.rel.
Yes
- Light bulb included
Yes
- Wireless charging
No
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2294973 Brumberg 39363153 39363153 LED recessed light LED (monochrome) w/o 6 W Nickel
User & Safety Instructions
User & Safety Instructions 2294973 Brumberg 39363153 39363153 LED recessed light LED (monochrome) w/o 6 W Nickel
Description

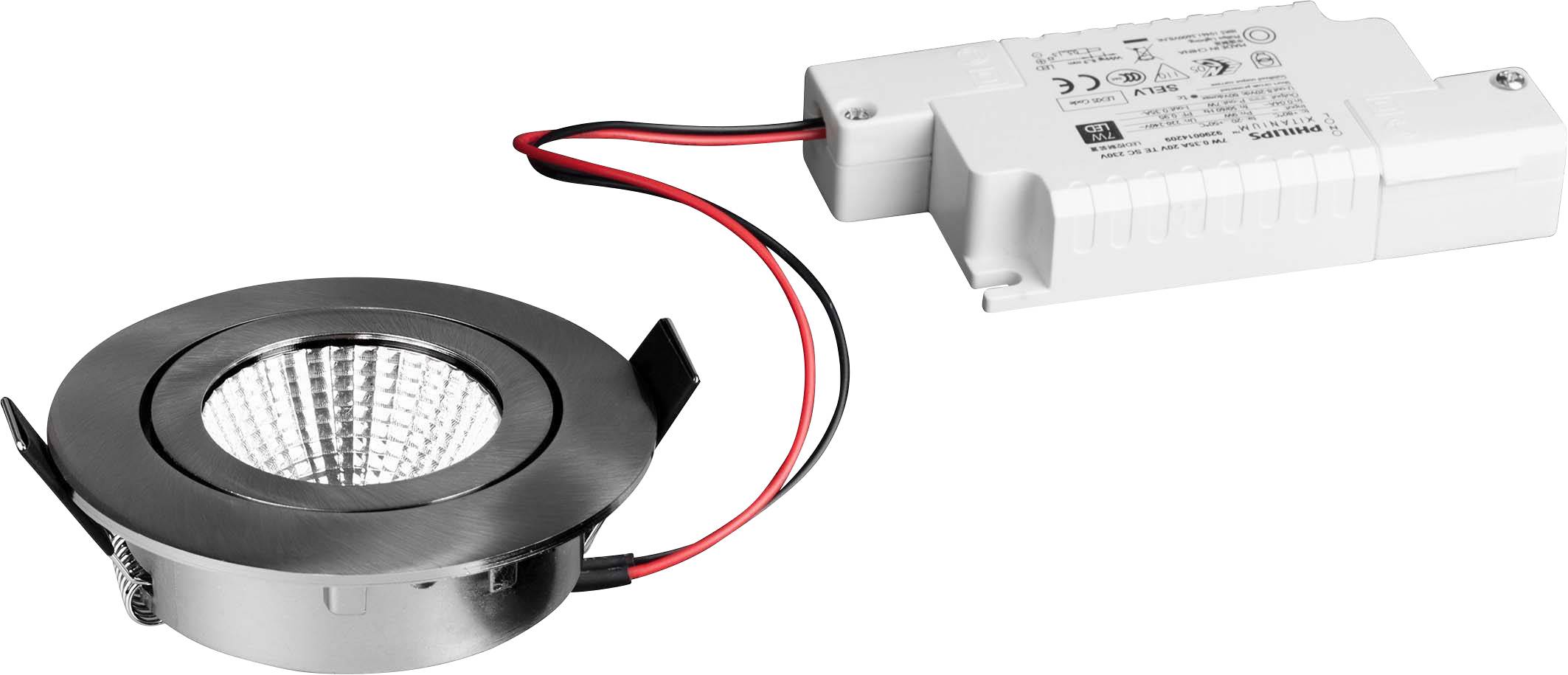

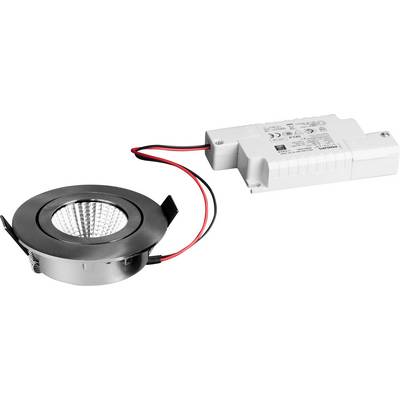

LED recessed light set BB03, dimmable, nickel. Designed in a compact design for quick mounting without tools for ceiling installation. Set incl. converter for 230 V mains voltage, phase section, dimensions of converter: L 110 x W 50 x H 19 mm. Socket: None, Mounting type: Installation, Mounting location: Ceiling mounting, Material: Aluminum / plastic, Protection type: According to DIN EN 60529: IP20, Protection class: (EN 61140) II, Voltage: 230V AC 50Hz, Power: 6W, Number of bulbs / sockets: 1.0 pcs, Light current: 640lm, Color temperature: 3000K, Light color: White, Radiation angle: 38°, Adjustable: With operating device, Type of dimming: Phase section
