1/4
Brumberg 39363183 39363183 LED recessed light LED (monochrome) w/o 6 W Black
EAN:
Part number:
Item no:
Highlights & Details
Brumberg LED recessed spotlight 230V 3000K 39363183
- Power= 6 W Total luminous flux= 630 lm Colour temperature= 3000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for panel mounting: Yes
- Suitable for mounting on a panel: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for pedestal-/floor mounting: No.
- Suitable for clamp mounting: No.
- Suitable for cable system: No.
- Adjustable: Pivoting
- With motion detector: No.
- With light sensor: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Socket: Without
- Material of housing: Aluminium
- Surface protection: Other
- Black enclosure
- Cover material: Transparent plastic
- Surface brushed: No.
- Voltage type AC
- Nominal voltage: 230 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimming depends on the operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming of phase section: Yes
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: High-gloss
- Light distribution: Symmetric

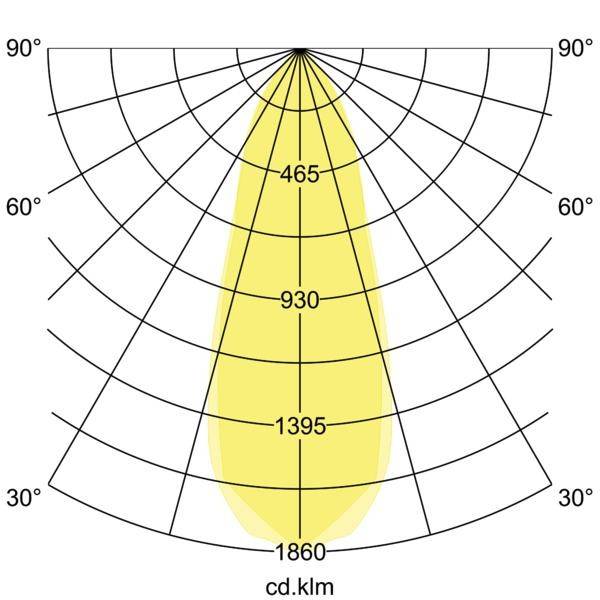

- Radiation angle: Medium radiation 21-40°
- Light emission: Direct
- Rated life L70/B50 at 25 °C: 30000 h
- Constant luminous flux regulation: No.
- Protection class (IP) IP20
- Protection class: II
- Suitable for lamp output 6 W
- Max. System power 6 W
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 80-89
- Luminous flux: 630 lm
- Rated light current according to IEC 62722-2-1: 630 lm
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.

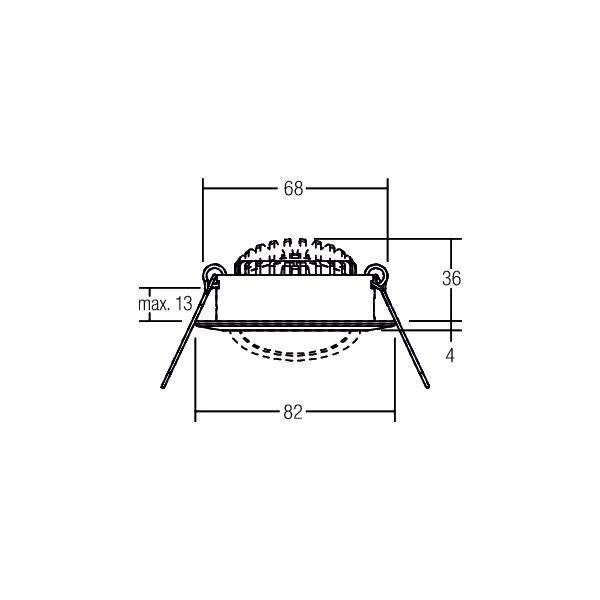

- Height/depth 4 mm
- Outer diameter: 82 mm
- Installation height/depth 36 mm
- Installation diameter 68 mm
- Type of wiring: Suitable for through-wiring
- Lamp with limited surface temperature "D-sign": No.
- Integrated emergency power supply: No.
- Light output 105 lm/W
- Covering of the lamp with thermal insulation material is possible: No.
- IFTTT support available: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
6 W
6 W
630 lm
- Total luminous flux
630 lm
3000 K
- Colour
White
- Type
Circular
- Radiation angle
38°
- Light features
Dimmable
- Recess diameter
68 mm
- Recess depth
36 mm
- Outside Ø
82 mm
IP20
- Protection class
II
- Factory colour
Black
- Material
Aluminium
n.rel.
- Dim
(Ø x H) 82 mm x 4.00 mm
Yes
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Height
4.00 mm
- Depth
4 mm
- (Ø)
82 mm
- Rated luminous flux
630 lm
- Colour rendering index
80-89
- Nominal voltage
230 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3139678 Brumberg 39363183 39363183 LED recessed light LED (monochrome) w/o 6 W Black
Description

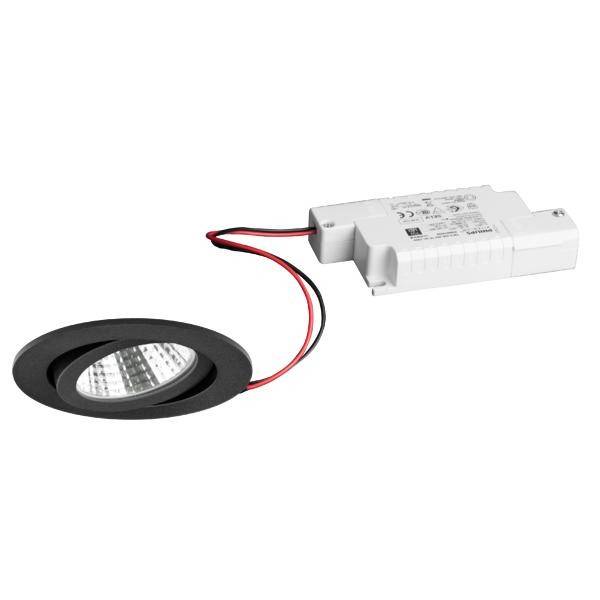

LED installation emitter set, phase section dimmable, structural black, round. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Set incl. converter for 230 V-mains voltage, phase section dimmable, dimensions of the converter: L 110 x B 50 x H 19 mm Mounting type: Mounting mounting, mounting location: Ceiling mounting, material: Aluminium / polycarbonate, enclosure rating: Room side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 6 W, number of lights / sockets: 1 pieces, luminous flux: 630 lm, color temperature: 3,000 K, radiation angle: 38°, adjustable: tilt, With operating device: yes, dimmable: yes, type of dimming: phase section.
