1/5
Brumberg 39383173 39383173 LED recessed light LED (monochrome) w/o 5 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

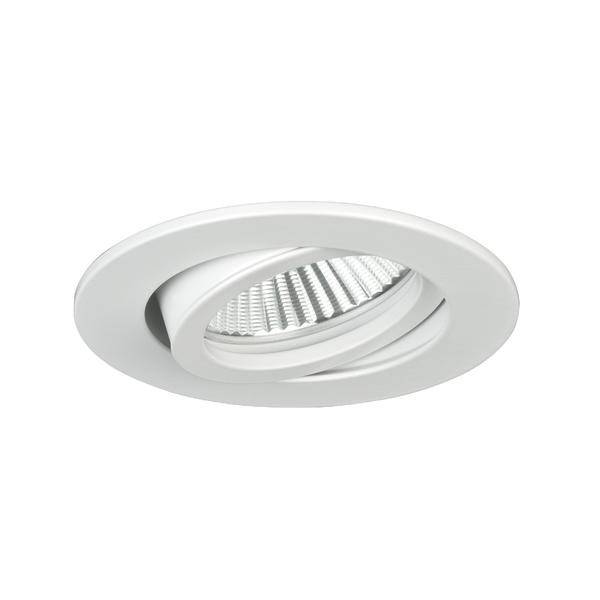

Brumberg LED recessed spotlight 230V, 38Gr., 3000K 39383173
- Power= 5 W Total luminous flux= 450 lm Colour temperature= 3000 K
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for panel mounting: Yes
- Suitable for mounting on a panel: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: No.
- Suitable for clamp mounting: No.
- Suitable for cable system: No.
- Adjustable: Pivoting
- With motion detector: No.
- With light sensor: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Socket: Without
- Housing material: Plastic
- Surface protection: Other
- Housing color: White
- Cover material: Transparent plastic
- Surface brushed: No.
- Voltage type AC
- Nominal voltage: 230 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimming depends on the operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming of phase section: Yes
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: High-gloss
- Light distribution: Symmetric
- Radiation angle: Medium radiation 21-40°
- Light emission: Direct
- Protection class (IP) IP20
- Protection class: II
- Suitable for lamp output 5 W
- Max. System power 5 W
- Colour temperature: 3000 K
- Color Rendering Index CRI: 90-100
- Light output 450 lm
- Rated light current according to IEC 62722-2-1: 450 lm
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.

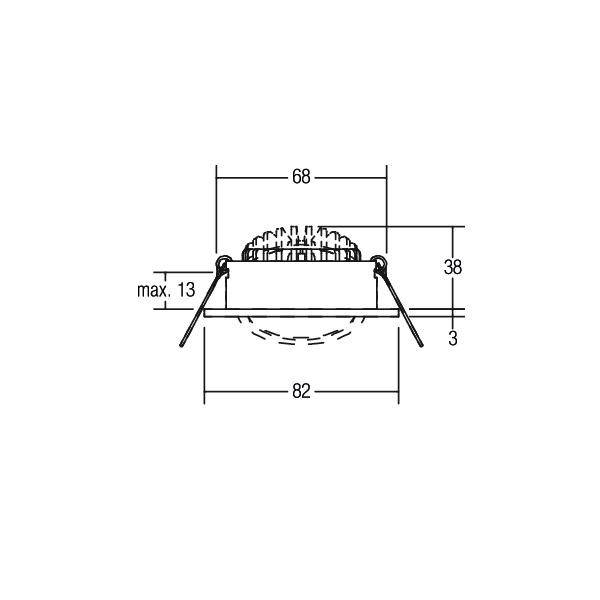

- Width 82 mm
- Height/depth 3 mm
- Length: 82 mm
- Outer diameter: 82 mm
- Installation height/depth 38 mm
- Installation diameter 68 mm
- Type of wiring: Suitable for through-wiring
- Lamp with limited surface temperature "D-sign": No.
- Integrated emergency power supply: No.
- Light output 90 lm/W
- Covering of the lamp with thermal insulation material is possible: No.
- IFTTT support available: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
5 W
5 W
450 lm
- Total luminous flux
450 lm
3000 K
- Recess diameter
68 mm
- Recess depth
38 mm
IP20
- Protection class
II
- Factory colour
White
- Material
Plastic
n.rel.
- Dim
(Ø x H) 82 mm x 3.00 mm
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Width
82.00 mm
- Height
3.00 mm
- Length
82.00 mm
- (Ø)
82 mm
- Rated luminous flux
450 lm
- Colour rendering index
90-100
- Nominal voltage
230 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3136635 Brumberg 39383173 39383173 LED recessed light LED (monochrome) w/o 5 W White
User & Safety Instructions
User & Safety Instructions 3136635 Brumberg 39383173 39383173 LED recessed light LED (monochrome) w/o 5 W White
Description

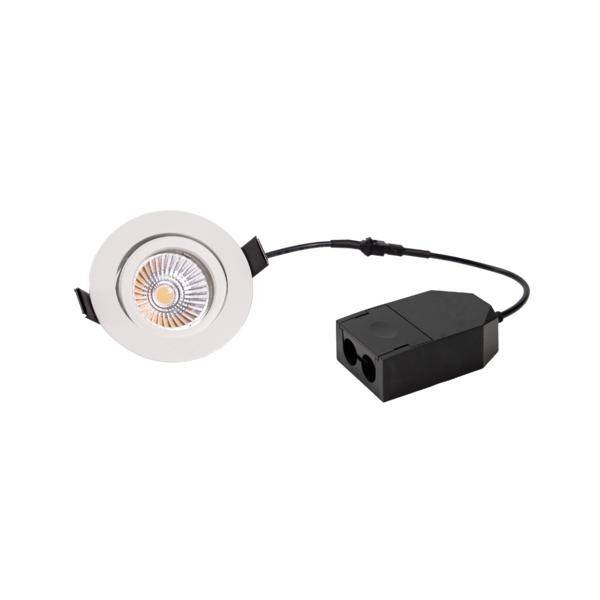

LOOP - Light Of Ocean Plastic. Certified LED panel mounted light housing and converter housing made from 100% recycled Ocean Plastic. LED installation emitter set, phase section dimmable, structural white, round. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Set incl. converter for 230 V-mains voltage, phase section dimmable, dimensions of converter: L 72 x B 45 x H 23 mm (converter housing also made of Ocean Plastic material) Mounting type: Installation mounting, mounting location: Material: Nylon / magnesium hydroxide / fiberglass, protection class on room side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 5 W, number of lights/sockets: 1 piece, light current: 450 lm, color temperature: 3,000 K, angle of radiation: 38°, adjustable: With operating device: yes, dimmable: yes, type of dimming: phase section.
