Brumberg 58239701 58239701 Ceiling light LED (monochrome) E-27 300 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Brumberg ceiling lamp 58239701
- Power= 300 W
- Total luminous flux= 3040 lm
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on the panel: Yes
- Suitable for light band configuration: No.
- Suitable for the number of bulbs: 5
- E27 socket
- Housing color: White
- Design of grid: Without
- Voltage type AC
- Nominal voltage: 230 V
- Operating device: Not required
- With operating device: No.
- Removable operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimmer function: No.

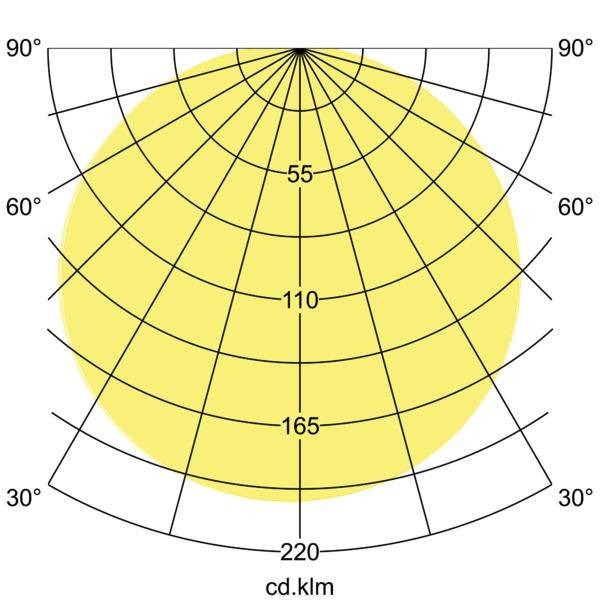

- Light distribution: Symmetric
- Protection class (IP) IP20
- Protection class: I
- Lamp with limited surface temperature ""D-sign"": No.
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Suitable for lamp output 60 W
- Max. System power 60 W
- Rated light current according to IEC 62722-2-1: 3040 lm
- Constant luminous flux regulation: No.
- Width 780 mm
- Height/depth 180 mm
- Length: 780 mm
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- With bulb: No.
- Dim
(L x W x H) 780.00 x 780.00 x 180.00 mm
- Type
Square
- Operating voltage
230 V
- No. of bulbs
5
- Product type
Ceiling light
- Width
780.00 mm
- Bulb type
LED (monochrome)
- Height
180.00 mm
E-27
- Length
780.00 mm
- Rating per bulb
60 W
- Depth
180 mm
300 W
- Light features
Dimmable
- Protection class
I
IP20
- Factory colour
White
n.rel.
- Colour
White
- Light bulb included
No
- Total luminous flux
3040 lm
- Rated luminous flux
3040 lm
- Nominal voltage
230 V
Documents & Downloads
Datasheet
Datasheet 3139063 Brumberg 58239701 58239701 Ceiling light LED (monochrome) E-27 300 W White
User & Safety Instructions
User & Safety Instructions 3139063 Brumberg 58239701 58239701 Ceiling light LED (monochrome) E-27 300 W White
Description
Ceiling-mounted light, 780 x 780 mm, shade white, square. Design in a compact design for the harmonious implementation in an architectural space concept. Square cloth lamp for ceiling mounting. Diffusor made of polycarbonate foil, shield material: Chintz. Further available screen variants and special solutions can be found online on our website as PDF for each product. Measure luminous flux with 5 x 10 W LED retrofit lamp (not included). Design: E27, mounting type: Mounting, mounting location: Ceiling mounting, protection class on room side: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 60 W, number of bulbs / sockets: 5 piece, light current: 3,040 lm, type of dimming: Others.
