Brumberg 58322003 58322003 LED mirror light White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Brumberg LED crystal glass mirror 3000K 58322003
- Total luminous flux= 3576 lm Colour temperature= 3000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: Yes
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for panel mounting: No.
- Suitable for mounting on the panel: Yes
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for the number of bulbs: 2
- Housing material: Other
- Design of grid: Without
- Voltage type AC
- Nominal voltage: 230 V
- Operating device: LED operating device voltage-controlled
- With operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: No.
- Without dimming function: Yes
- Light distribution: Symmetric
- Light emission: Direct
- Rated life L70/B50 at 25 °C: 60000 h
- Protection type (IP) IP44
- Protection class: II
- Lamp with limited surface temperature "D-sign": No.
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Suitable for lamp output 17 W
- Max. System power 34 W
- Light output 210.35 lm/W
- Rated light current according to IEC 62722-2-1: 3576 lm
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 90-100
- Constant luminous flux regulation: No.
- Width 600 mm
- Height/depth 800 mm
- Length: 800 mm
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Product type
LED mirror light
- Operating voltage
230 V
- No. of bulbs
2
- Bulb type
LED (monochrome)
- Rating per bulb
17 W
3000 K
- Colour
White
- Total luminous flux
3576 lm
- Protection class
II
IP44
- Dim
(L x W x H) 800.00 x 600.00 x 800.00 mm
n.rel.
- Colour rendering index
90-100
- Light bulb included
Yes
- Width
600.00 mm
- Height
800.00 mm
- Length
800.00 mm
- Rated luminous flux
3576 lm
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Nominal voltage
230 V
Documents & Downloads
Datasheet
Datasheet 3137963 Brumberg 58322003 58322003 LED mirror light White
User & Safety Instructions
User & Safety Instructions 3137963 Brumberg 58322003 58322003 LED mirror light White
Description

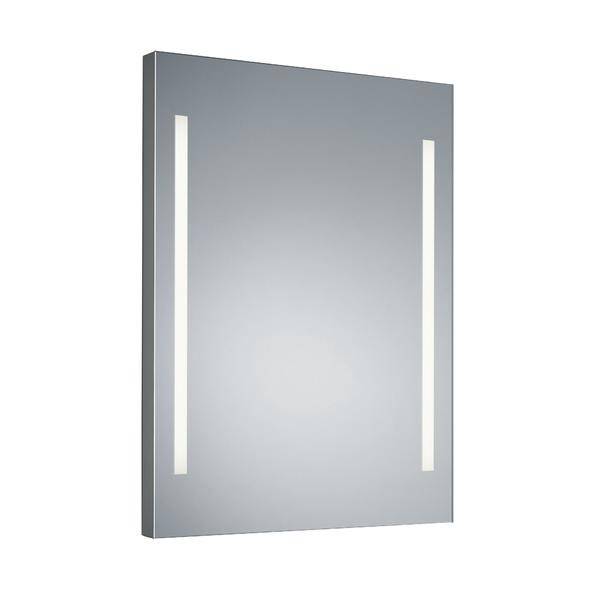

LED wall-mounted mirror light, IP44, rectangular. Design in a compact design for the harmonious implementation in an architectural space concept. LED mirror light with two-sided illumination. Mounting type: Mounting, installation location: Wall mounting, material: Crystal mirror glass / aluminum, protection class: Room side: According to DIN EN 60529: IP44, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 17 W, number of lights / sockets: 2 piece, light current: 3,576 lm, color temperature: 3,000 K, with operating device: Yes, dimmable: No, Type of dimming: switchable.
