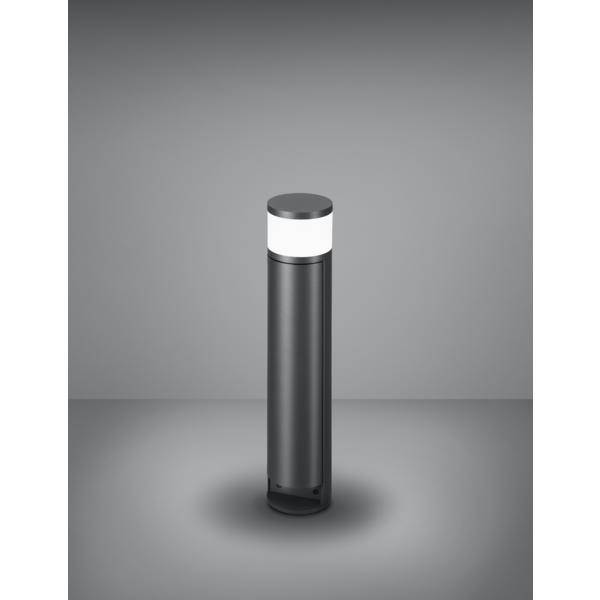

Brumberg 65202103 65202103 LED bollard light LED (monochrome) w/o 3 W
EAN:
Part number:
Item no:
Highlights & Details

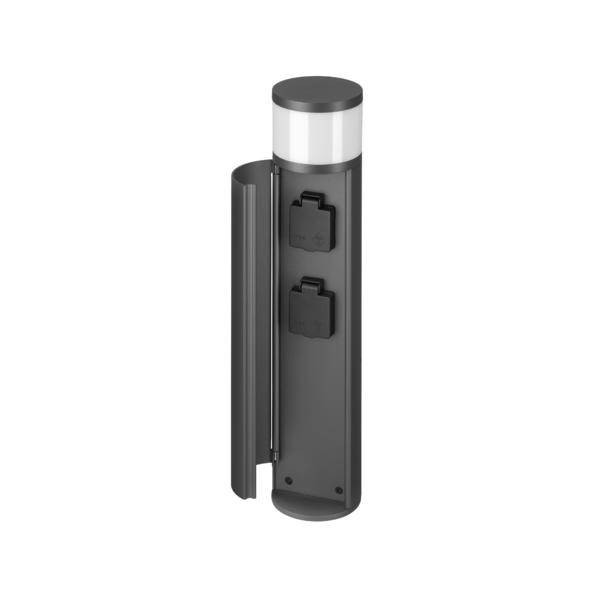

Brumberg lights LED bollard light m. 2 sockets 65202103
- Power= 3 W Total luminous flux= 232 lm Colour temperature= 3000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- With light sensor: No.
- With motion detector: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Socket: Without
- Material of housing: Aluminium
- Surface protection: Other
- Voltage type AC
- Nominal voltage: 230 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Protection type (IP) IP44
- Protection class: I
- Suitable for lamp output 3 W
- Max. System power 3 W
- Light distribution: Symmetric
- Light emission: Direct
- Rated light current according to IEC 62722-2-1: 232 lm
- Light output 77.33 lm/W
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Width 100 mm
- Height/depth 480 mm
- Length 100 mm.
- Diameter 100 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
LED bollard light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
w/o
- Rating per bulb
3 W
3 W
3000 K
- Colour
White
232 lm
- Total luminous flux
232 lm
- Light features
Incl. ballast
- Protection class
I
IP44
- Material
Aluminium
- Dim

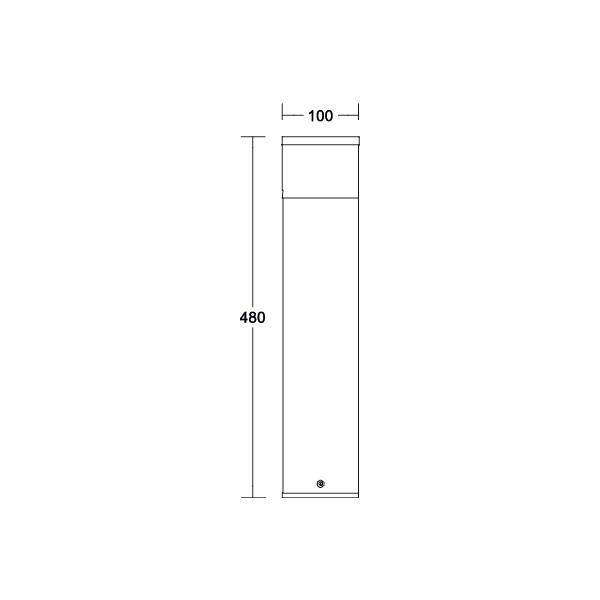

(Ø x H) 100 mm x 480.00 mm
n.rel.
- Light bulb included
Yes
- Width
100.00 mm
- Height
480.00 mm
- Length
100.00 mm
- Depth
480 mm
- (Ø)
100 mm
- Rated luminous flux
232 lm
- Colour rendering index
80-89
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3135794 Brumberg 65202103 65202103 LED bollard light LED (monochrome) w/o 3 W
Description
LED bollard light / terminal column, IP44, structure graphite, other. Design in a compact design for the harmonious implementation in an architectural space concept. Mounting type: Mounting, mounting location: Floor mounting, material: Aluminium / glass / plastic, protection class: On the room side: According to DIN EN 60529: IP44, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 3 W, number of lights / sockets: 3,000 piece, light current: 232 lm, color temperature: From 3,000 K to 1 K, light color: White, adjustability: not adjustable, with operating device: yes, type of dimming: switchable.
