Brumberg 78313084 78313084 LED hall light
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Number of pins: 5
- Protection class (IP) IP65
- Surface protection: Powder-coated
- Protection class: I
- Impact strength: IK09
- Material of housing: Aluminium
- Nominal voltage 220..240 V
- Connection type: Other
- Voltage type AC/DC
- Bulb: LED not replaceable
- Operating device: LED operating device current-controlled
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Constant luminous flux regulation: No.
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.

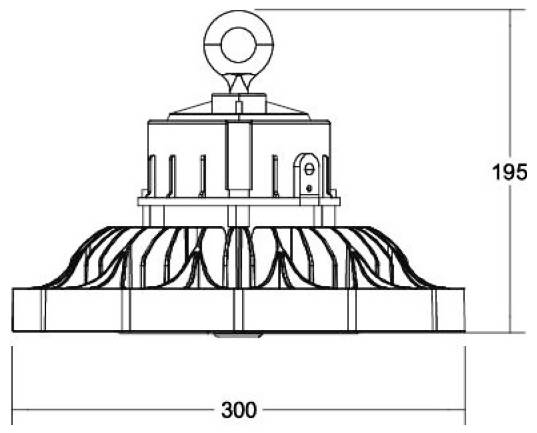

- Height/depth 195 mm
- Type of wiring: Suitable for through-wiring
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on a panel: No.
- Suitable for panel mounting: No.
- Suitable for wall mounting: No.

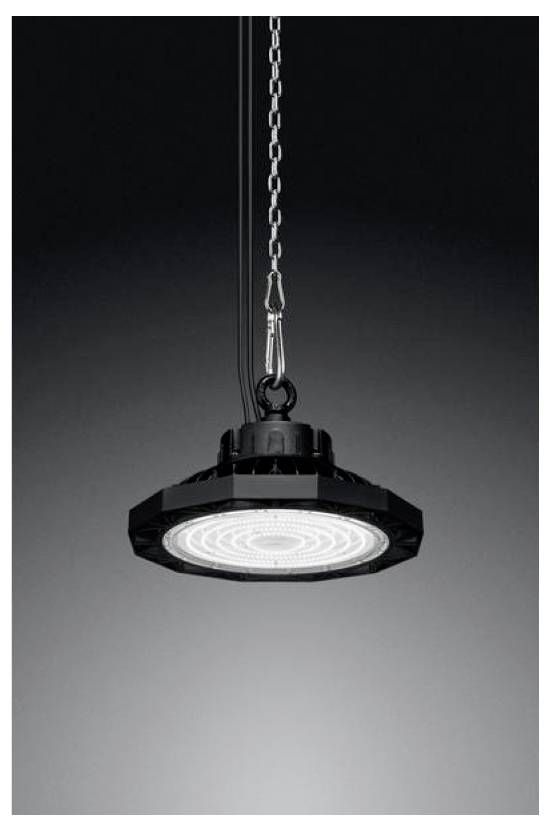

- Suitable for pendulum suspension: Yes
- Suitable for ceiling mounting: No.
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- Adjustable: Not adjustable
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Black enclosure
- Surface brushed: No.
- With operating device: Yes
- Removable operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Without

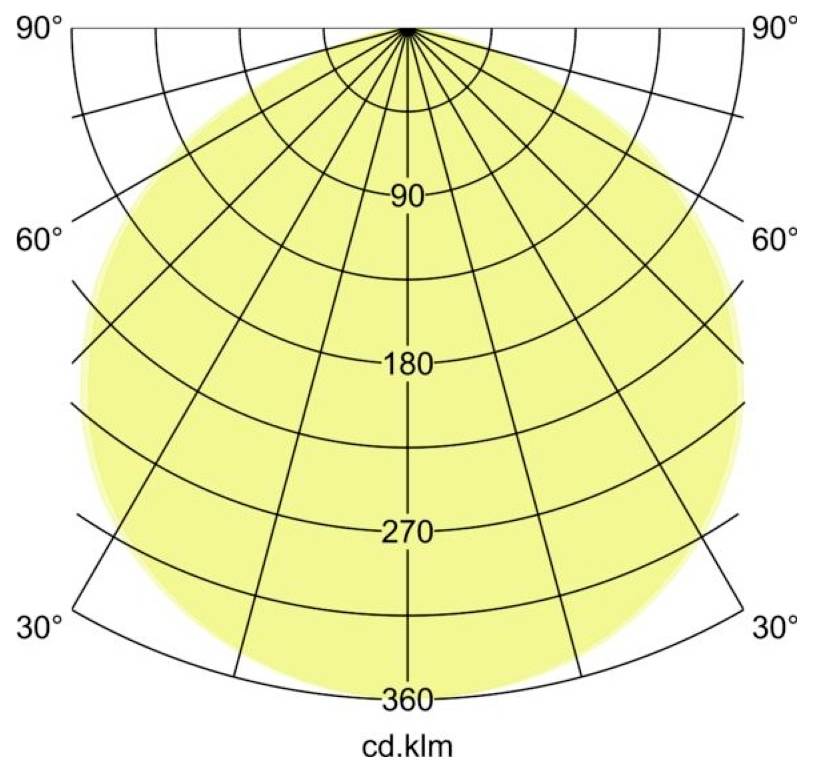

- Light distribution: Symmetric
- Light emission: Direct
- Suitable for lamp output 160 W
- Luminous flux: 26100 lm
- Rated light current according to IEC 62722-2-1: 26100 lm
- Operation via Bluetooth: No.
- Outer diameter: 300 mm
- Suitable for screen workstations according to EN 12464-1: No.
- Cover material: Transparent plastic
- Light distributor: Without
- Color consistency (McAdam ellipse): SDCM4
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: No.
- Suitable for clamp mounting: No.
- Socket: Without
- Max. Number of lights circuit breaker B16: 14
- Max. Number of lamps line circuit breakers C16: 15
- Rated life L70/B50 at 25 °C: 50000 h
- Product type
LED hall light
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3552782 Brumberg 78313084 78313084 LED hall light
User & Safety Instructions
User & Safety Instructions 3552782 Brumberg 78313084 78313084 LED hall light
Description
LED hall-woofer, DALI-2 dimmable, multi-lumen, black, round. Pendant mounting, ceiling mounting Highbay LED hall spotlight incl. power supply for 230 V-mains voltage, DALI-2 dimmable Design: Without socket, mounting type: Mounting location: Ceiling mounting, material: Aluminium/polycarbonate, enclosure rating: Room side: According to DIN EN 60529: IP65, protection class: (EN 26,100) I, voltage: 230V AC 50Hz, power: 160 W, number of lights / sockets: 1 pieces, light current: 61140 lm, color temperature: 4,000 K, color: white, angle of radiation: 120°, Adjustable: not adjustable, with operating device: yes, dimmable: yes, type of dimming: DALI-2.
