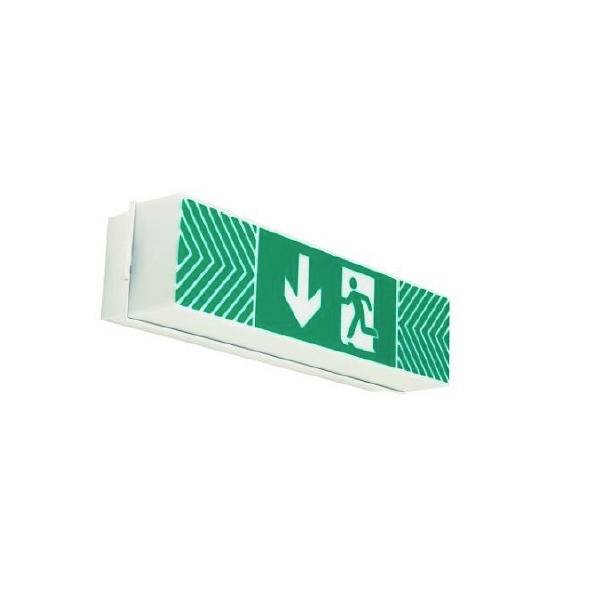

Brumberg 79130004 Escape route lighting Wall mount Down
EAN:
Part number:
Item no:
Technical specifications
- Dim

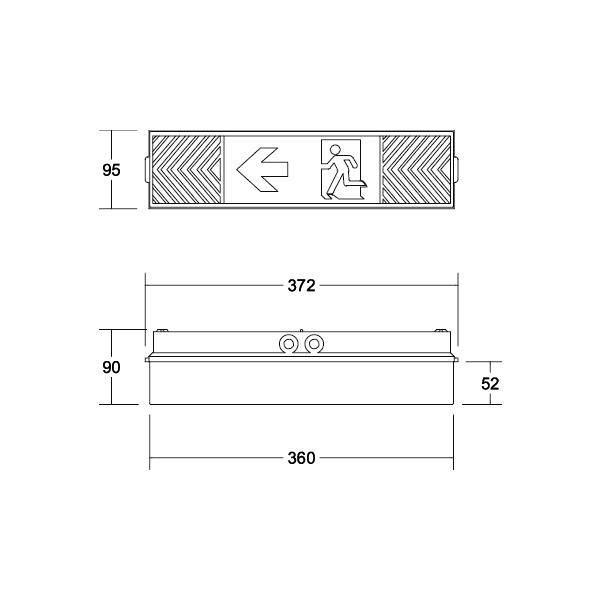

(W x H x D) 95 x 372 x 90 mm
- Product type
Escape route lighting
- Motif
Exit
- Max. battery life
3 h
- Type
Down
- Operating voltage
230 V
4.6 W
- Bulb type
LED (monochrome)
- Material
Plastic
- Mounting type
Wall mount
- Width
95 mm
- Height
372 mm
- Depth
90 mm
IP54
- Protection class
II
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2745972 Brumberg 79130004 Escape route lighting Wall mount Down
Description
LED-rescue signal lamp, white. Design in a compact design for the harmonious implementation in an architectural space concept. Emergency sign lamp, detection range 18 m, nominal operating duration 3 h, nominal operating duration convertible to 8 h, then the emergency lighting factor (BLF) is only 40% , ceiling or wall mounting, incl. LiFePO4 single battery and pictogram set Automatic self-test through integrated battery. Design: Without socket, mounting type: Mounting, mounting location: Wall mounting, material: Polycarbonate, protection class: At room side: According to DIN EN 60529: IP54, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 4.6W, light current: 120 lm, color temperature: 4,000 K, light color: White, Adjustable: Not adjustable, with operating device: Yes.
