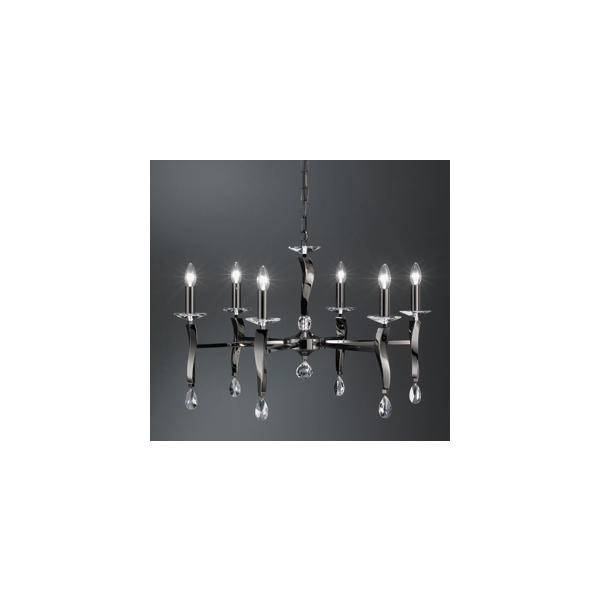

Brumberg 859066 859066 Pendant light Light bulb E14 40 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Brumberg Crown Girata 6Lp.E14/40W, schw.chR 00859066 tubes
- Power= 40 W
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for light band configuration: No.
- Suitable for the number of bulbs: 6
- E14 socket
- Housing material: Other
- Casing color: Other
- Cover material: Other
- Design of grid: Without
- Nominal voltage: 230 V
- Operating device: Not required
- With operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimming DALI-2: No.
- Dimmer DMX: No
- Dimming programmable: No.
- Dimmer DSI: No.
- Dim. RF: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Light distribution: Symmetric
- Light emission: Direct
- Direct/indirect shares separately adjustable: No.
- Protection class (IP) IP20
- Protection class: I
- Lamp with limited surface temperature ""D-sign"": No.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- Suitable for lamp output 40 W
- Max. System power 240 W
- Constant luminous flux regulation: No.
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 480 mm
- Diameter 810 mm
- With suspension: Yes
- Pendant length: 700 mm
- Type of wiring: Suitable for through-wiring
- Number of poles: 3
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulbs: Incandescent lamp
- With bulb: No.
- Product type
Pendant light
- Operating voltage
230 V
- No. of bulbs
6
- Bulb type
Light bulb
E14
- Rating per bulb
40 W
40 W
- Light features
Incl. suspension
- Pendulum length (max.)
70 cm
- Protection class
I
IP20
- Dim
(Ø x H) 810 mm x 480.00 mm
n.rel.
- Light bulb included
No
- Height
480.00 mm
- Depth
480 mm
- (Ø)
810 mm
- Nominal voltage
230 V
Documents & Downloads
Datasheet
Datasheet 3137935 Brumberg 859066 859066 Pendant light Light bulb E14 40 W
User & Safety Instructions
User & Safety Instructions 3137935 Brumberg 859066 859066 Pendant light Light bulb E14 40 W
Description
Pendant lamp, black chrome. Design in a compact design for the harmonious implementation in an architectural space concept. Design: E14, mounting type: Mounting, mounting location: Ceiling mounting, material: Other, protection class: From room: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 40 W, with operating device: No, type of dimming: Other.
