Buy Brumberg 88246165DA 88246165DA LED ceiling spotlight

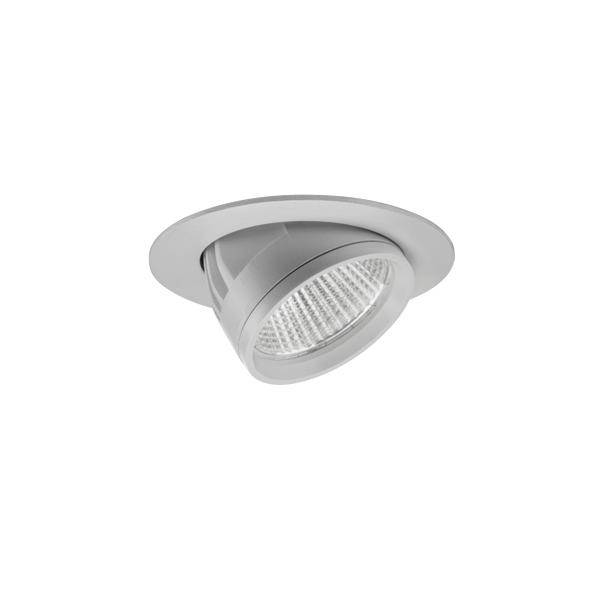

Recessed ceiling spotlight with a tilted silver trim and visible LED-style light fixture.

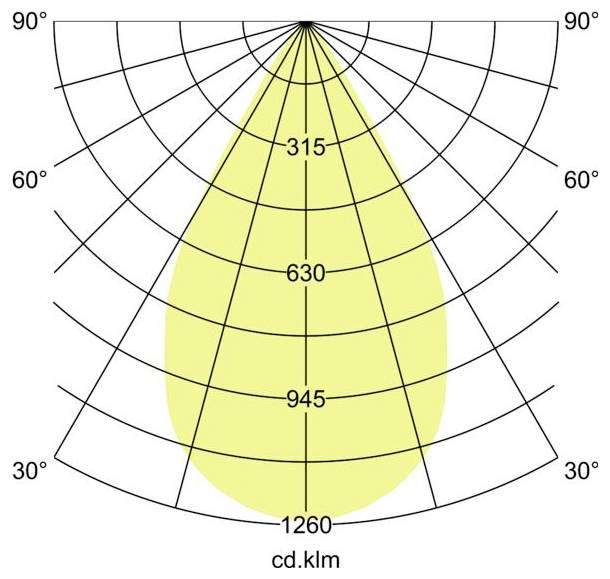

Polar light distribution chart showing a symmetric yellow beam, with angle markings from 30° to 90° and intensity labels 315, 630, 945, and 1260 cd.

Polar candela diagram showing a yellow teardrop-shaped light distribution, with angle markings from 30° to 90° and intensity labels 315, 630, 945, 1260 cd.

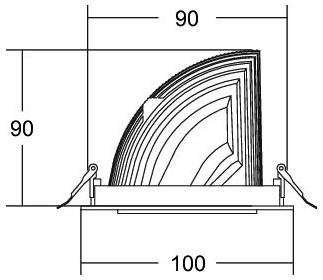

Technical drawing of a folding fan or layered curved panels opened in a square frame, with dimensions labeled 90 by 90 and base width 100.

Technical drawing of a folding fan or hinged panel open 90 degrees, with dimensions labeled 90 by 90 and base width 100.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Protection class (IP) IP20
Surface protection: Powder-coated
Protection class: II
Material of housing: Aluminium
Nominal voltage: 230 V
Voltage type AC
Bulb: LED not replaceable
Operating device: LED operating device current-controlled
Energy efficiency class of light source according to EU directive 2019/2015: Not required
Light color: White
Colour temperature: 3500 K
Color Rendering Index CRI: 90-100
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Type of wiring: Finish
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Suitable for mounting on a panel: No.
Suitable for panel mounting: Yes
Suitable for wall mounting: No.
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: No.
Suitable for traverse installation: No.
Suitable for cable system: No.
With motion detector: No.
With light sensor: No.
With bulb: Yes
Suitable for the number of bulbs: 1
Housing color: Silver
Surface brushed: No.
With operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: Yes
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimmer function: No.
Reflector: High-gloss
Light distribution: Symmetric
Light emission: Direct
Suitable for lamp output 15 W
Luminous flux: 1731 lm
Rated light current according to IEC 62722-2-1: 1731 lm
Installation height/depth 90 mm
Installation diameter 90 mm
Operation via Bluetooth: No.
Outer diameter: 100 mm
Cover material: Transparent glass
Suitable for pedestal-/floor mounting: No.
Suitable for rail mounting: No.

Product type: LED ceiling spotlight

: n.rel.

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3545629 Brumberg 88246165DA 88246165DA LED ceiling spotlight

User & Safety Instructions

User & Safety Instructions 3545629 Brumberg 88246165DA 88246165DA LED ceiling spotlight

Description

LED installation emitter, rotary and swiveling, DALI dimmable, reflector silver, faceted, structure silver, round. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium / glass / plastic, protection class: On the room side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 3,500 W, number of lights / sockets: 60 piece, light current: 1,731 lm, color temperature: 15 K, radiation angle: 1°, adjustable: Rotatable and head adjustable, with device: Yes, type of dimming: DALI-DT6.

This text is machine translated.
