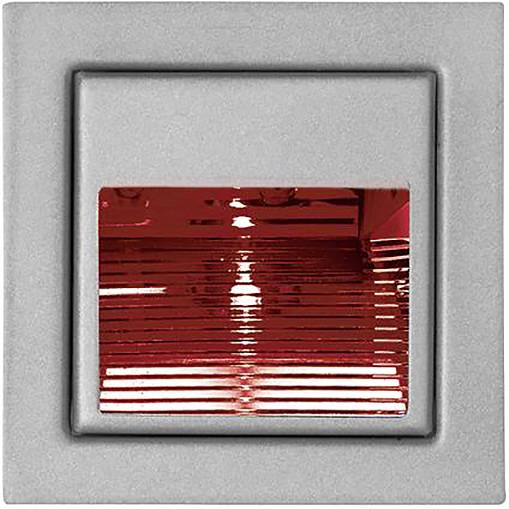

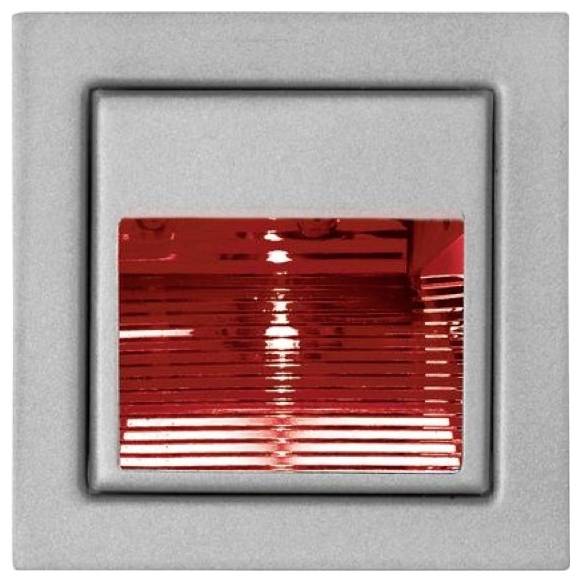

Brumberg P3729R 00P3729R LED recessed wall light
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Brumberg LED Wall-EB Light Aluminium Power-LED rd, 1W P3729R
Technical specifications

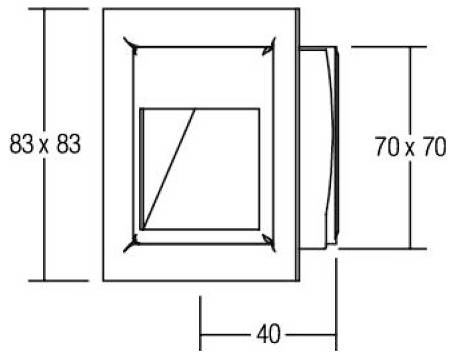

- Width 83 mm
- Protection class (IP) IP20
- Mounting width 70 mm
- Type of cover: Without
- Protection class III
- Material of housing: Steel
- Nominal current 350 mA
- Voltage type DC
- Bulb: LED not replaceable
- Operating device: LED operating device current-controlled
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Color Rendering Index CRI: 80-89
- Height/depth 1.5 mm
- Suitable for mounting on a panel: No.
- Suitable for panel mounting: Yes
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Casing color: Aluminium
- With operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Light distribution: Asymmetric
- Suitable for lamp output 1.2 W
- Max. System power 1.2 W
- Installation height/depth 40 mm
- Operation via Bluetooth: No.
- Cover material: Without cover
- Compatible with Casambi: No.
- Version: Other
- Mounting length 70 mm
- Product type
LED recessed wall light
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3549245 Brumberg P3729R 00P3729R LED recessed wall light
User & Safety Instructions
User & Safety Instructions 3549245 Brumberg P3729R 00P3729R LED recessed wall light
Description
LED wall mounted light, square. Mounting, wall mounting For installation in hollow walls by means of leaf spring (optional accessories: Flush-mounted housing 3702, price: 11.90 Euro). Design: Plug & Play, mounting type: Installation mounting, mounting location: Wall mounting, material: Steel / aluminum, enclosure: In accordance with DIN EN 60529: IP20, protection class: (EN 61140) III, power: 1.2 W, number of lights / sockets: 1 pieces, adjustability: Not adjustable, without operating device, dimmable: Dependent on operating device, type of dimming: Dependent on operating device.
