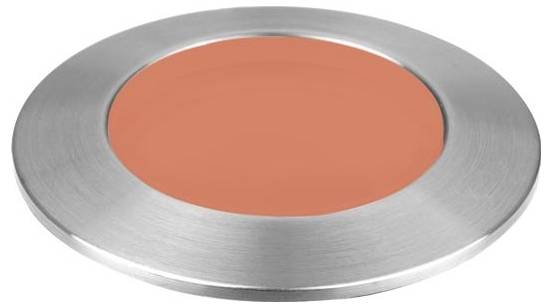

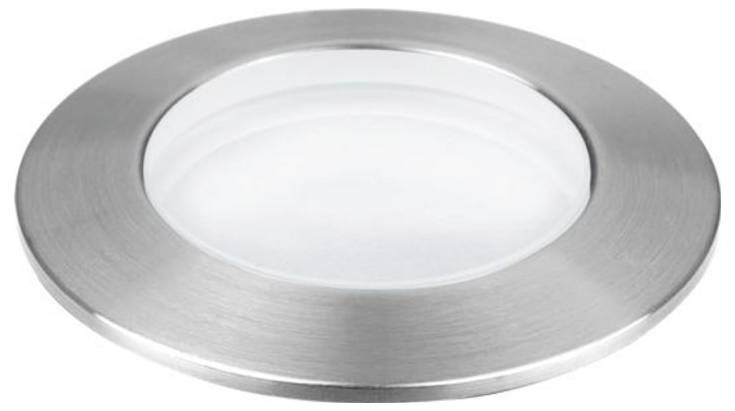

Brumberg P3817R 00P3817R LED floor recess light
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Brumberg LED ground light fixture 1xLED 1W rd P3817R
Technical specifications
- Protection class (IP) IP65
- Protection class III
- Material of housing: Stainless steel
- Nominal current 350 mA
- Bulb: LED not replaceable
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Color Rendering Index CRI: 80-89
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: Stainless steel
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Suitable for lamp output 1 W

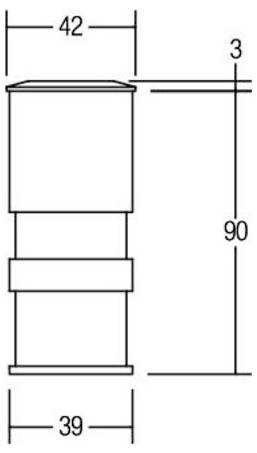

- Installation height/depth 90 mm
- Installation diameter 39 mm
- Operation via Bluetooth: No.
- Compatible with Casambi: No.
- Version: Other
- Roll-over bar: No.
- Product type
LED floor recess light
n.rel.
Documents & Downloads
Datasheet
Datasheet 3550351 Brumberg P3817R 00P3817R LED floor recess light
User & Safety Instructions
User & Safety Instructions 3550351 Brumberg P3817R 00P3817R LED floor recess light
Description
LED sunken ground light, IP65, stainless steel mat, round. Mounting, floor mounting Include mounting sleeve and 150 mm connection cable Design: Plug&Play, mounting type: Mounting installation, mounting location: Floor mounting, material: Stainless steel / aluminum / plastic / glass, enclosure rating: Room side: According to DIN EN 60529: IP65, protection class: (EN 61140) III, power: 1 W, number of lights / sockets: 1 pieces, type of dimming: Depends on operating device.
