Buy Bulgin BX0011/1 Battery tray 1x AA Solder lug (L x W x H) 73.1 x 33.3 x 24.2 mm

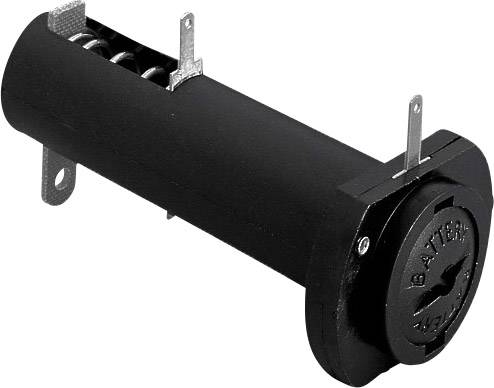

Black plastic battery holder with three metal contacts and spring inside, marked with the word 'BATTERY'.

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

166 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 14.28 / piece)

€ 14.28

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Battery holder closed

Bayonet with coin slot
Flange front and rear mounting bracket
Glass fiber reinforced and flame-retardant housing

Technical specifications

Temperature range of -30 to +70 °C
Case dia. 22.35 mm

Product type: Battery tray

Connector: Solder lug

Dim: (L x W x H) 73.1 x 33.3 x 24.2 mm

Suitable for battery size: AA

No. of cells: 1

Length: 73.1 mm

Width: 33.3 mm

Height: 24.2 mm

Material (details): Polished nickel, zinc-coated brass, glass fiber-reinforced polyamide

Factory colour: Black

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1577636 Bulgin BX0011/1 Battery tray 1x AA Solder lug (L x W x H) 73.1 x 33.3 x 24.2 mm

User & Safety Instructions

User & Safety Instructions 1577636 Bulgin BX0011/1 Battery tray 1x AA Solder lug (L x W x H) 73.1 x 33.3 x 24.2 mm

Description

High-quality and extremely robust battery holder of glass fiber reinforced and flame-retardant polyamide. make closed design for installation in the housing to change the battery from the outside or installation to ensure a secure fit for the battery for inclinations and overhead. Quality contacts in polished nickel with a very good conductivity.
