Buy Bürkert 0450 31709 8 bar (max) 1 pc(s)

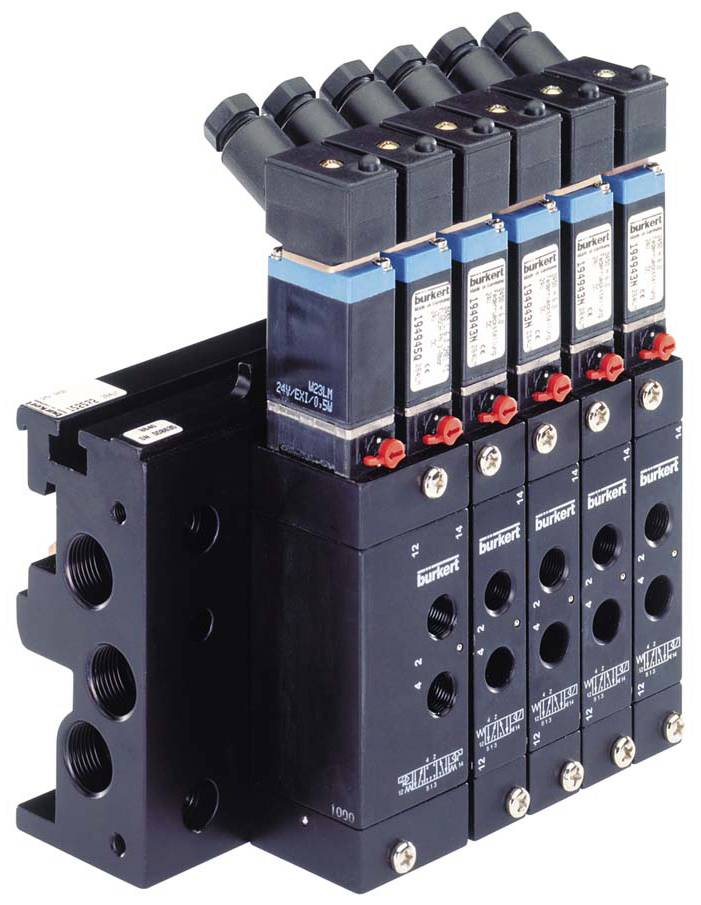

'Valve block with multiple solenoid valves, characterised by blue and black components, for industrial applications.'

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Drive - manual operation Material: PA (polyamide)
Mounting (valve terminal) - arranged dimensions 1: 33 mm
Sealing Material - Main Valve Seal Material: NBR (Nitrile rubber)
Sealing material - pre-control of seal material: FKM (fluororubber)
Pressure & Temperature - Temperature Medium min -10 °C.
Pressure & Temperature - Temperature Medium max. 70 °C.
Pressure & temperature - ambient temperature min: -10 °C.
Pressure & temperature - temperature Surroundings max. 55 °C
Pressure & temperature - nominal pressure at least 3 bar
Pressure & temperature - nominal pressure max. 8 bar
Electrical connection - Device socket in the range of supply: Not included
Electrical connection - Electrical connection Type: Plug picture Form C according to DIN EN 175301-803
Electrical connection - Electrical connection Position: Supply side
Equipment properties - Product sub-group: Pneumatic valves
Equipment characteristics - main valve operating principle: Spool valve
Device properties - valve control type: Electrical
Device features - switching time opening max.: 15 ms
Features - switching time includes max.: 22 ms
Device properties - rated mode/duty cycle: 100%
Device properties - power reduction integrated: No.
Nominal width (kV value) - QNn value (gas): 1,580 l/min.
Nominal width (kV value) - pilot control nominal diameter (mm): 0.9 mm
Nominal width (kV value) - main valve nominal width 1 (P) (mm): 9 mm
Process/line connection - supply connection type: Flange
Process/cable connection - flange image: FM13
Process/line connection - work connection diameter (inch): 1/4 inch
Process/line connection – work connection type: Internal thread
Process/cable connection – work connection, thread type: G.
Process/line connection - work connection Position: Opposite the supplier side
Process/wire connection – work connection material: Aluminium
Protection class IP rating (max. for suitable connection) IP65
Voltage - battery voltage: Yes
Voltage - voltage min. / nominal voltage: 24 V
Voltage - voltage max. / nominal voltage 24 V
Voltage - AC voltage: No.
Voltage - DC voltage: Yes
Coil (Kern) - Max. Power consumption: 1 W.
Coil (Kern) - Max. Power consumption: 1 W.
Coil (Kern) - Coil Switching LED: No.
Coil (Kern) - Coil wiring Overvoltage protection: None
Coil (Kern) - Coil Switching Rectifier: No.
Coil (Kern) - Coil arrangement Pole protection: No.
Coil (Kern) - Coil Switching Free-wheeling diode: No.
Coil (Kern) - Coil Switching Redundant Free-wheeling diode: No.
Materials - main valve material touching medium: Aluminum
Materials - main valve material in contact with the environment: Aluminium
Materials - precontrol material in contact with medium: PA (polyamide)
Materials - precontrol material in contact with the environment: PA (polyamide)
Operating principle - fluid line connection Number: 5
Operation - Valve function Number of switching positions: 2
Operation - Valve function: H/Z - open in rest position - Pressure connection 1 after work connection 2, work connection 4 after output 5 open, output 3 speed/Z - open in rest position - Pressure connection 1 after work connection 2, work connection 4 after output 5 open, output 3 closed
Operation - Manual operation: Yes
Mode of action - manual operation type: Rotation
Mode of action - manual actuation Locking: No.
Operation principle - manual operation of screw slot: Yes
