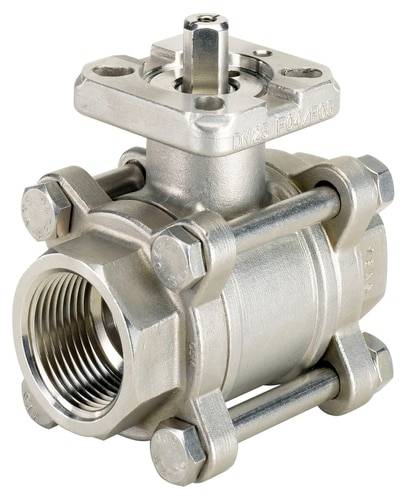

Bürkert 2654 186003 Ball valve 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Drive - Mounting flange according to ISO 5211: Yes
- Drive - drive/valve flange interface: F07/F10
- Drive - interface drive/fitting shaft: 17 mm
- Drive - break-out torque: 112 N m.
- Drive - torque: 89 N m.
- Sealing material - parts in contact with medium Sealing material: PTFE (polytetrafluorethylene)
- Pressure & Temperature - Temperature Medium min -10 °C.
- Pressure & Temperature - Temperature Medium max. 200 °C.
- Functions - Ball bore: Straight through hole
- Device Properties - Product Sub-Group: Open/To Valves
- Process/line connection – line connection 1 type: Internal thread
- Process/cable connection - cable connection 1 nominal width: DN 80
- Process/wire connection - cable connection 1 standard Rp (DIN EN 10226-1 (old DIN 2999))
- Process/line connection - fittings version: Standard
- Materials - ball material: Stainless steel 1.4401 (A182 - 316)
- Materials - Fitting Housing Material: Stainless Steel 1.4408 (A351 - CF8M)
- Operating principle - fluid line connection Number: 2
- Operation - Valve function Number of switching positions: 2
- Operation - Manual operation: No.
- Operation - Manual operation Type: Not available
- Mode of action - manual operation locking: No manual operation available
- Product type
Ball valve
- Manufacturer part #
186003
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Operating temperature (max.)
200 °C
- Operating temperature (min.)
-10 °C
- Operating temperature range
-10 up to 200 °C
- Function
2/2-way
- Media temperature (range)
-10 up to 200 °C
- Max. media temperature
200 °C
- Media temperature (min.)
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3047915 Bürkert 2654 186003 Ball valve 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047915 Bürkert 2654 186003 Ball valve 1 pc(s)
Description
2/2-way ball valve made of stainless steel for blocking media streams. The ball valves can be connected via the mechanical interface according to ISO 5211 with a pneumatic (e.g. type 2051, type 2052, type 2053) or electric rotary drive (e.g. type 3003, type 3004, type 3005).
Advantages
- Low torques
- High flow values
- High media pressures
- Long service life
- Easy to maintain
