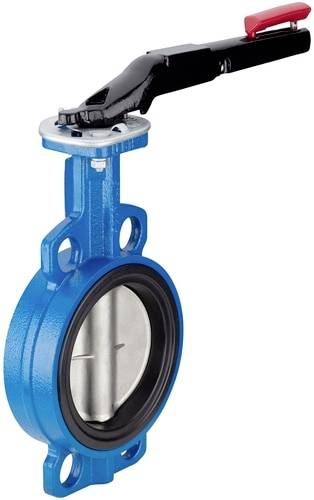

Bürkert 2671 Butterfly valve 10 bar (max) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Shut off flap
- Manual / automated
- High flow values
- The shaft and housing are not in contact with the Medium
- Low torque
- Zero leakage
Technical specifications
- Material: Polystyrene cast
- Seal material:FKM
- Nominal width 200 mm
- Line connection: Flange image DIN EN 1092-1 DN 200 (old DIN 2501)
- Special feature: With manual actuation
- Missing attributes: Fittings supplier 350011
- Drive: Hand lever with ratchet position.
- Shaft Disc Storage: Centric (Standard)
- Casing shape: Intermediate flange
- Disc material: Stainless steel A351 size CF8 M
- Cut. Cr/arm surf.: F10/F12
- Cut. Anr/arm shaft 17 mm
- Nominal pressure 10 bar
- Manufacturer part #
20005734
- Material (details)
Cast iron
- Connection
Flanged DIN EN 1092-1 DN 200 (old DIN 2501)
- Connection
Flange
- Max. operating pressure
10 bar
- Pressure range
10 bar (max)
- Sealant
FKM
- Function
2/2-way
- Nominal width
200 mm
- Nominal width
200 mm
- Pipe Ø
200 DN
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3048018 Bürkert 2671 Butterfly valve 10 bar (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3048018 Bürkert 2671 Butterfly valve 10 bar (max) 1 pc(s)
Description
2/2-way shut-off flap made of metal for blocking and regulating media streams. Due to the fact that the shut-off valve is available in various designs (intermediate flange, end flange) as well as in various materials, it meets the requirements of Diverser applications and processes. Priority areas of application for shut-off valves include, for example, the metal industry, power plant technology, paper industry as well as mining, shipbuilding and mechanical engineering. Other characteristics and advantages are: • Continuous shaft for self-centering flap disc --> uniform wear and low torque • PFA-coated shaft in the sealing range • Flowing-out safe shaft seal • Spherical formed flap disc • Raster hand lever made of spherical cast: Can be locked in 10 positions
