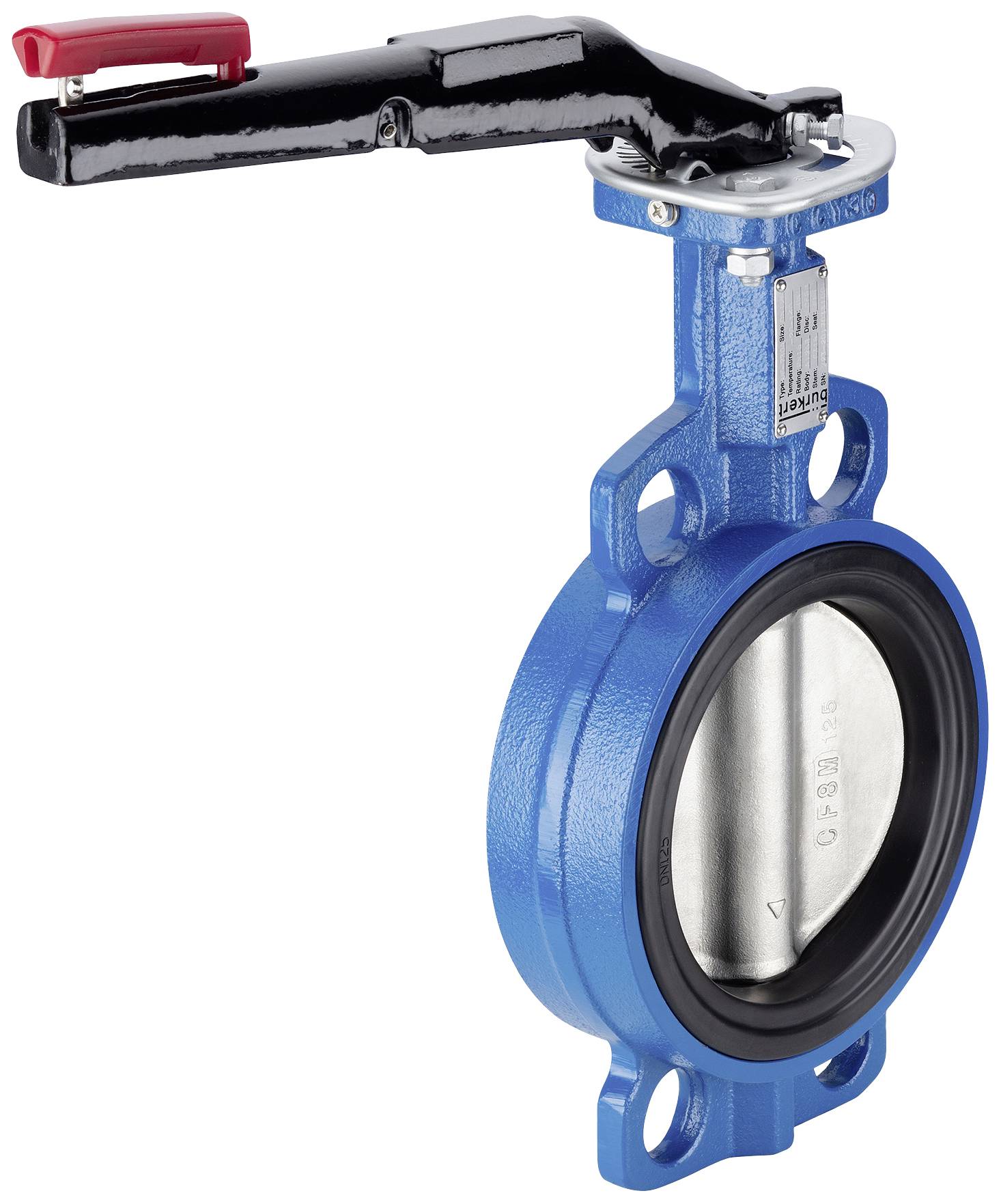

Bürkert 2671 Butterfly valve 16 bar (max) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Flap, manual operation
- Manual / automated
- High flow values
- The shaft and housing are not in contact with the Medium
- Low torque
- Zero leakage
Technical specifications
- Material: Polystyrene cast
- Seal material ept
- Nominal width 300 mm
- Line connection: Flange image DIN EN 1092-1 DN 300 (old DIN 2501)
- Special feature: With manual actuation
- Missing attributes: Fittings supplier 350011
- Drive: Hand lever with ratchet position.
- Shaft Disc Storage: Centric (Standard)
- Casing shape: Intermediate flange
- Disc material: Stainless steel A351 size CF8 M
- Cut. Cr/arm surf.: F10/F12
- Cut. Anr/arm shaft 22 mm
- Nominal pressure 16 bar
- Manufacturer part #
773658
- Material (details)
Cast iron
- Connection
Flanged DIN EN 1092-1 DN 300 (old DIN 2501)
- Connection
Flange
- Max. operating pressure
16 bar
- Pressure range
16 bar (max)
- Sealant
EPT
- Function
2/2-way
- Nominal width
300 mm
- Nominal width
300 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3047895 Bürkert 2671 Butterfly valve 16 bar (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047895 Bürkert 2671 Butterfly valve 16 bar (max) 1 pc(s)
Description
2/2-way shut-off flap made of metal for blocking and regulating media streams. Due to the fact that the shut-off valve is available in various designs (intermediate flange, end flange) as well as in various materials, it meets the requirements of Diverser applications and processes. Priority areas of application for shut-off valves include, for example, the metal industry, power plant technology, paper industry as well as mining, shipbuilding and mechanical engineering. Other characteristics and advantages are: • Continuous shaft for self-centering flap disc --> uniform wear and low torque • PFA-coated shaft in the sealing range • Flowing-out safe shaft seal • Spherical formed flap disc • Raster hand lever made of spherical cast: Can be locked in 10 positions
