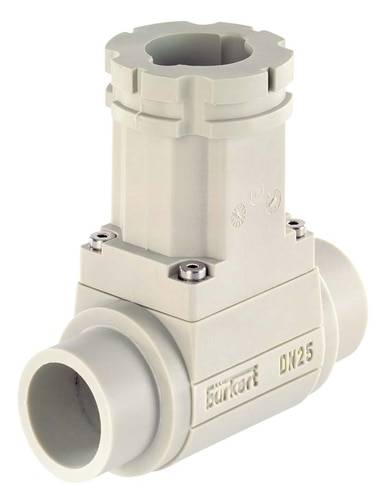

Bürkert 428697 Flow meter fitting S020 1 pc(s)
EAN:
Part number:
Item no:
Product type
Flow meter fitting
Type
S020
Content
1 pc(s)
Length
110 mm
Height
81 mm
Datasheet (PDF)
Highlights & Details
Insertion Fitting for flow measurements type 8020 and type 8045
- Suitable for impeller flowmeters type 8020 and magnetic inductive flow meter type 8045.
Technical specifications
- Connection: weld joint support Ø 40 mm
- Cable connectors
- DIN 16962
- Medium pressure PN10 (the pressure limits are also on the used measuring device-dependent - see Pressure - Temperature Chart in the data sheet)
- The ambient temperature is also on the used measuring device-dependent - see data sheet)
- Product type
Flow meter fitting
- Type
S020
- Content
1 pc(s)
- Length
110 mm
- Height
81 mm
- Max. operating pressure
10 bar
- Enclosure material
Polypropylene
- Weight
0.440 kg
- Max. media temperature
+80 °C
- Media temperature (min.)
0 °C
- Nominal diameter
32 mm
- Sealant
FKM
- Max. ambient temperature
+60 °C
Documents & Downloads
Datasheet
Datasheet 627164 Bürkert 428697 Flow meter fitting S020 1 pc(s)
User & Safety Instructions
User & Safety Instructions 627164 Bürkert 428697 Flow meter fitting S020 1 pc(s)
Description
The Insertion fitting is specially designed for the insertion measuring devices from bürkert built. A measuring point consists of a running-in plug-in, the fitting and a leak-route.
This text is machine translated.
This text is machine translated.
Features
- T-Fitting
- Housing Material PP
- PP between support
- FKM seal
Hints
Fitting for sensors type 8020 and type 8045.
Minimum run-up and slow-down distances must be maintained according to EN ISO 5167-1 (see data sheet).
