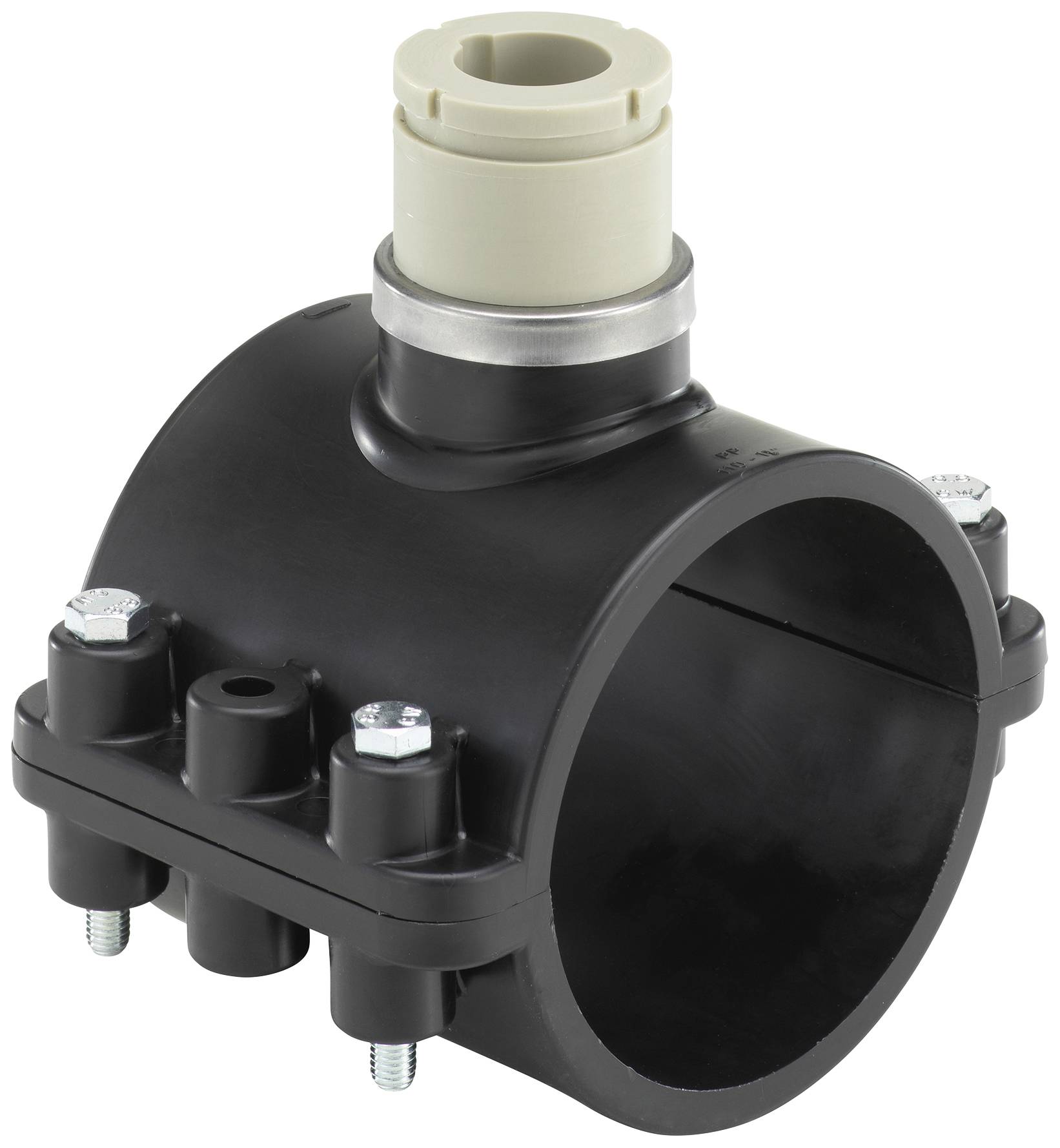

Bürkert 436489 Flow meter fitting S020 1 pc(s)
EAN:
Part number:
Item no:
Product type
Flow meter fitting
Type
S020
Content
1 pc(s)
Height
93 mm
(Ø)
49 mm
Highlights & Details
Insertion Fitting for flow measurements type 8020 and type 8045
- Suitable for impeller flowmeters type 8020 and magnetic inductive flow meter type 8045.
Technical specifications
- Connection: screw sockets
- Nominal width 100 mm up to DN 400 mm
- Medium pressure PN10 (the pressure limits are also on the used measuring device-dependent - see Pressure - Temperature Chart in the data sheet)
- The ambient temperature is also on the used measuring device-dependent - see data sheet)
- Product type
Flow meter fitting
- Type
S020
- Content
1 pc(s)
- Height
93 mm
- (Ø)
49 mm
- Enclosure material
Polyethylene (PE)
- Weight
0.500 kg
- Max. media temperature
+70 °C
- Media temperature (min.)
0 °C
- Nominal diameter
250 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 627291 Bürkert 436489 Flow meter fitting S020 1 pc(s)
Description
The Insertion fitting is specially designed for the insertion measuring devices from bürkert built. A measuring point consists of a running-in plug-in, the fitting and a leak-route.
This text is machine translated.
This text is machine translated.
Features
- Screw sockets
- Polyethylene
Hints
Fitting for sensors type 8020 and type 8045.
Minimum run-up and slow-down distances must be maintained according to EN ISO 5167-1 (see data sheet).
