Bürkert 8031 572254 1 pc(s)
EAN:
Part number:
Item no:
Type
8031
Content
1 pc(s)
UKCA
yes
Datasheet (PDF)
Technical specifications
- Material POM
- Seal material:FKM
- Line connection: G 1/4 supports
- Special feature: With mounting plate
- Voltage 4,5-24 volt
- Frequency: Direct current
- Sensor: Low flow impeller
- Measurement range 10-100 l/h
- Sensor function: Measurement
- Design: Compact design IP67
- Output: Open collector PNP/NPN
- Missing attributes: Cable length 1000 mm
- Maximum Pressure Control Pressure (bar): 10
- Medium temperature (degree C) (max): 80
- Ambient temperature (degree C) (max): 80
- Type
8031
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3048057 Bürkert 8031 572254 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3048057 Bürkert 8031 572254 1 pc(s)
Description

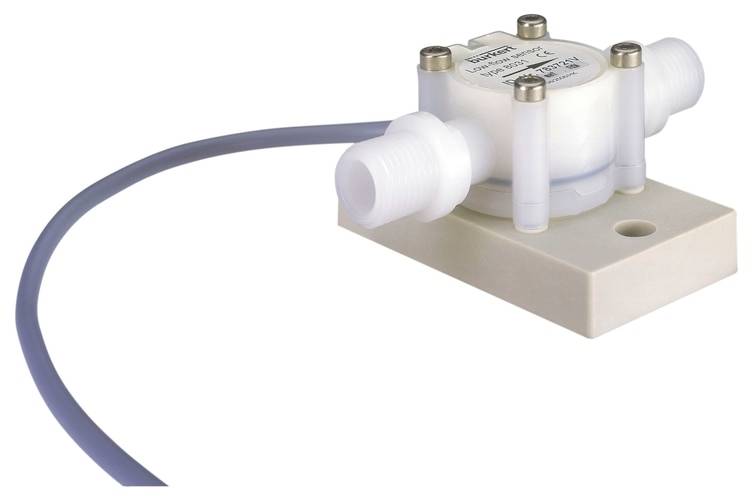

The compact low-flow sensor type 8031 with impeller and Hall sensor is especially suitable for use in aggressive and low-solid liquids.
The particularly cost-effective measurement principle is based on local flow rate measurement. The sensor provides a flow-proportional frequency signal, which can be simply transmitted and analyzed.
The connection to a Bürkert universal transmitter type 8025 is particularly recommended (see corresponding data sheet).
This text is machine translated.
The particularly cost-effective measurement principle is based on local flow rate measurement. The sensor provides a flow-proportional frequency signal, which can be simply transmitted and analyzed.
The connection to a Bürkert universal transmitter type 8025 is particularly recommended (see corresponding data sheet).
This text is machine translated.
