Bürkert 8031 783719 1 pc(s)
EAN:
Part number:
Item no:
Type
8031
Connector
Cable, open end
Media temperature (min.)
0 °C
Max. media temperature
80 °C
IP rating
IP65
Datasheet (PDF)
Technical specifications
- Sealing material - parts in contact with medium Sealing material: FKM (fluororubber)
- Seal material - Seal housing/cover material: FKM
- Pressure & Temperature - Temperature Medium min 0 °C.
- Pressure & Temperature - Temperature Medium max. 80 °C.
- Pressure & Temperature - Pressure max Sensors: 10 bar
- Pressure & temperature - ambient temperature min: 0 °C.
- Pressure & temperature - temperature Surroundings max. 80 °C
- Inputs/outputs - output 1 digital type: Transistor
- Inputs/outputs - output 1 digital transistor contact free 0.01 A
- Inputs/outputs - output 1 digital transistor Connection NPN: Yes
- Inputs/outputs - output 1 digital transistor Connection PNP: Yes
- Electrical connection - Electrical connection 1 Type: Cable with free wires
- Electrical connection - Electrical connection 1 Number: 1 pieces
- Electrical connection - Electrical connection 1 Number of contacts: 3 pieces
- Electrical Connection - Electrical Connection 1 Line Length: 1,000 mm
- Electrical connection - Electrical connection 1 Material Category: Plastics
- Electrical connection - Electrical connection 1 Material: PVC (polyvinyl chloride)
- Functions - continuous measurement: Yes
- Functions - Dosage: No.
- Functions - Switch: No.
- Functions - Local parameterization: No.
- Functions - Parameterization disconnected: No.
- Functions - Fixed parameterization: Yes
- Functions - Time Dosage: No.
- Functions - Batch Dosing: No.
- Functions - Advanced Diagnostics: No.
- Functions - Quantity Counter: No.
- Device Properties - Product Sub-Group: Flow
- Equipment characteristics - installation length 77 mm
- Device properties - device design: Compact
- Medium & Calibration - Dynamic Viscosity min: 1 cp
- Medium & Calibration - Dynamic Viscosity max. 10 cp
- Measured values - measured value of volume flow min: 10
- Measured values - measured value of volume flow max.: 100
- Measured values - unit of measurement value: L/h
- Measured values - flow (volume): Yes
- Measured Values - Flow (Ground): No.
- Measured values - temperature: No.
- Measured values - Density: No.
- Measured values - concentration 1: No.
- Measured Values - Accuracy Volume flow in relation to measured value: 2%
- Nominal diameter (kV value) - nominal diameter of measuring tube (DN): 6 mm
- Process/wire connection – line connection 1 type: Outer thread
- Process/line connection - line connection material Category: Plastics
- Process/cable connection - cable connection material: POM
- Process/cable connection - cable connection 1 Thread name: 1/4
- Process/cable connection - cable connection 1 Thread type: G.
- Process/wire connection – line connection 2 type: Outer thread
- Process/cable connection - cable connection 2 Thread type: G.
- Process/cable connection - cable connection 2 Thread name: 1/4
- Protection class - protection class of measuring device (IP): IP65
- Protection class - tropical protection type: No.
- Sensor type: Impeller
- Sensor - impeller material: POM
- Sensor - impeller type: Magnetic
- Sensor impeller wheel axle material: Stainless steel with coating
- Sensor - Storage Material Category: Plastics
- Sensor - bearing material: POM (Polyoxymethylene)
- Sensor - Detection of flow direction: No.
- Sensor – impeller measurement principle Detection: Hall
- Software / communication display: No.
- Voltage - DC voltage min.: 5 V
- Voltage - DC voltage max. 24 V.
- Voltage - battery voltage: No.
- Materials - measuring tube material: POM (polyoxymethylene)
- Materials - sensor housing material: POM
- Materials - Electronics housing Material Category: Plastics
- Materials - electronics housing material: POM
- Materials - screws Material: Stainless steel
- Materials - Cover Material: POM
- Operating principle - fluid line connection Number: 2
- Type
8031
- Connector
Cable, open end
- Media temperature (min.)
0 °C
- Max. media temperature
80 °C
IP65
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3047281 Bürkert 8031 783719 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047281 Bürkert 8031 783719 1 pc(s)
Description

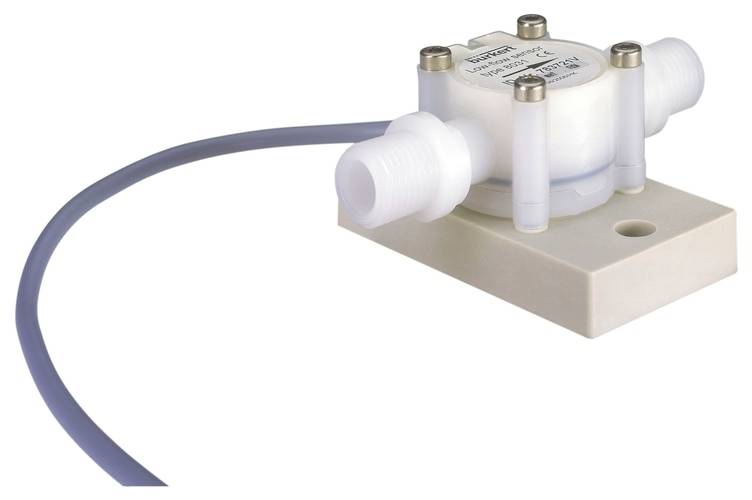

The compact low-flow sensor type 8031 with impeller and Hall sensor is especially suitable for use in aggressive and low-solid liquids.
The particularly cost-effective measurement principle is based on local flow rate measurement. The sensor provides a flow-proportional frequency signal, which can be simply transmitted and analyzed.
The connection to a Bürkert universal transmitter type 8025 is particularly recommended (see corresponding data sheet).
