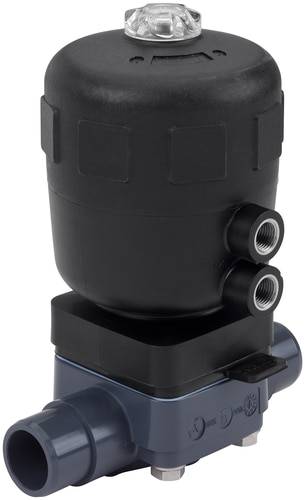

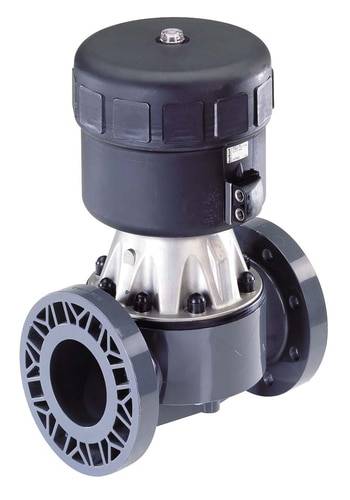

Image similar
Bürkert Air-operated valve 147845 2030 Flange Nominal width (details) 65 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Connection Size Losflansch
- Nominal diameter membrane size 65 mm
- Drive Size Ø 175 mm
- Kv-Wert 60.0 m³/h
- Minimum Control Pressure 4.5 bar
- Operating pressure: 5 bar
- Medium temperature see diagram Pressure - Temperature compatibility in the data sheet
- Ambient temperature -10 to +50 °C
- Product type
Air-operated valve
- Max. operating pressure
5 bar
- Enclosure material
PVC-U
- Connection
Flange
- Operating temperature
-10 °C (min)
- Media temperature (range)
-10 up to +60 °C
- Manufacturer part #
147845
- Operating pressure (min.)
5 bar
- Min. operating temperature
-10 °C
- Sealant
EPDM
- Function
2/2-way
- Weight
15.75 kg
- Max. media temperature
+60 °C
- Media temperature (min.)
-10 °C
- Nominal width
65 mm
- Features
Flange
- Width
290 mm
- Height
387 mm
- Control pressure (min.)
4.5 bar
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-10 °C
- KV value
1000 l/min
Documents & Downloads
Datasheet
Datasheet 1533600 Bürkert Air-operated valve 147845 2030 Flange Nominal width (details) 65 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1533600 Bürkert Air-operated valve 147845 2030 Flange Nominal width (details) 65 mm 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
