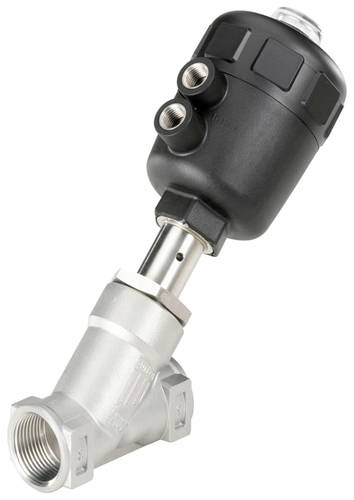

Bürkert Angled valve 2000 211432 9 bar (max) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Drive - Drive design: PA drive, VA threaded bush on control air connection
- Drive - drive size: DM 80 mm
- Mode of action - control function: Closed with spring force
- Material: Stainless steel
- Seal material PTFE
- Nominal width 40 mm
- Line connection G 1 1/2 sleeve
- Special feature: Oil, grease and silicone-free according to DIS 1000020797 (WN 06 3 50054)
- Missing Attributes: EPS 18 ATEX 2 008 X / IECEx EPS 18.0007 X mech. Ex h IIC T4 GB / Ex h IIIC T135°C DB
- Medium temperature (degree C) (max): 185
- Ambient temperature (degree C) (max): 60
- Ambient temperature (degree C) (min): -10
- Pressure (bar) (max): 9
- Medium temperature (degree C) (min): -10
- Ways/positions: 2 ways / 2 positions
- Control pressure (min): 5
- Control pressure (max): 10
- KV VALUE (M*3/H): 38
- Product type
Angled valve
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
211432
- Dim
(Ø) 80 mm
- Max. operating pressure
9 bar
- Pressure range
9 bar (max)
- (Ø)
80 mm
- Pipe Ø
40 mm
- Control pressure (max.)
10 bar
- Control pressure (min.)
5 bar
- Type
2000
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3046974 Bürkert Angled valve 2000 211432 9 bar (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046974 Bürkert Angled valve 2000 211432 9 bar (max) 1 pc(s)
Description
The externally controlled tilt valve consists of a pneumatically actuated piston drive and a 2-way valve housing. Depending on the ambient temperature, the drive is available in two different materials, PA and PPS. The proven self-adjusting spindle sealing ensures high tightness. The flow-oriented 2/2-way valve housing made of bronze or fine cast stainless steel allows high flow values. These maintenance-free and robust valves can be retrofitted with a comprehensive range of accessories for position indication, lift limitation or manual emergency operation.
This text is machine translated.
