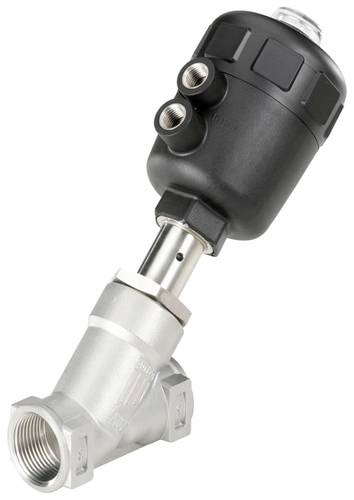

Image similar
Bürkert Angled valve 2000 344649 15 bar (max) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Drive - drive design: PPS-drive, VA-threaded bush at the control air connection
- Drive - drive size: DM 40 mm
- Mode of action - control function: Closed with spring force
- Material: Stainless steel
- Seal material PTFE
- Nominal width 15 mm
- Line connection G 3/8 sleeve
- Medium temperature (degree C) (max): 185
- Ambient temperature (degree C) (max): 140
- Ambient temperature (degree C) (min): 5
- Pressure (bar) (max): 15
- Medium temperature (degree C) (min): -10
- Ways/positions: 2 ways / 2 positions
- Control pressure (min): 4
- Control pressure (max): 10
- KV VALUE (M*3/H): 3.7
- Product type
Angled valve
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
344649
- Dim
(Ø) 40 mm
- Max. operating pressure
15 bar
- Pressure range
15 bar (max)
- (Ø)
40 mm
- Pipe Ø
15 mm
- Control pressure (max.)
10 bar
- Control pressure (min.)
4 bar
- Type
2000
- Max. ambient temperature
140 °C
- Min. ambient temperature
5 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3047481 Bürkert Angled valve 2000 344649 15 bar (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047481 Bürkert Angled valve 2000 344649 15 bar (max) 1 pc(s)
Description
The externally controlled tilt valve consists of a pneumatically actuated piston drive and a 2-way valve housing. Depending on the ambient temperature, the drive is available in two different materials, PA and PPS. The proven self-adjusting spindle sealing ensures high tightness. The flow-oriented 2/2-way valve housing made of bronze or fine cast stainless steel allows high flow values. These maintenance-free and robust valves can be retrofitted with a comprehensive range of accessories for position indication, lift limitation or manual emergency operation.
