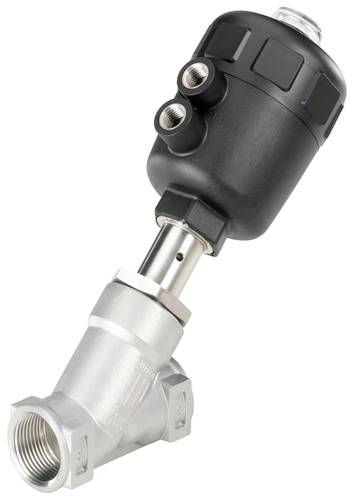

Image similar
Bürkert Angled valve 2000 369791 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Drive - Drive design: PA drive, VA threaded bush on control air connection
- Drive - drive size: DM 50 mm
- Mode of action - control function: Closed with spring force
- Material: Stainless steel
- Seal material PTFE
- Nominal width 25 mm
- Cable connection: Welding end 25.0 x 1.2 in accordance with SMS 3008
- Special feature: Housing OD-tubing long
- Missing Attributes: EPS 18 ATEX 2 008 X / IECEx EPS 18.0007 X mech. Ex h IIC T4 GB / Ex h IIIC T135°C DB
- Medium temperature (degree C) (max): 185
- Ambient temperature (degree C) (max): 40
- Ambient temperature (degree C) (min): -10
- Pressure (bar) (max): 5.2
- Medium temperature (degree C) (min): -10
- Ways/positions: 2 ways / 2 positions
- Control pressure (min): 4.1
- Control pressure (max): 10
- KV VALUE (M*3/H): 15
- Product type
Angled valve
- Manufacturer part #
369791
- Control pressure (max.)
10 bar
- Control pressure (min.)
4.1 bar
- Type
2000
- Max. ambient temperature
40 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3047970 Bürkert Angled valve 2000 369791 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047970 Bürkert Angled valve 2000 369791 1 pc(s)
Description
The externally controlled tilt valve consists of a pneumatically actuated piston drive and a 2-way valve housing. Depending on the ambient temperature, the drive is available in two different materials, PA and PPS. The proven self-adjusting spindle sealing ensures high tightness. The flow-oriented 2/2-way valve housing made of bronze or fine cast stainless steel allows high flow values. These maintenance-free and robust valves can be retrofitted with a comprehensive range of accessories for position indication, lift limitation or manual emergency operation.
