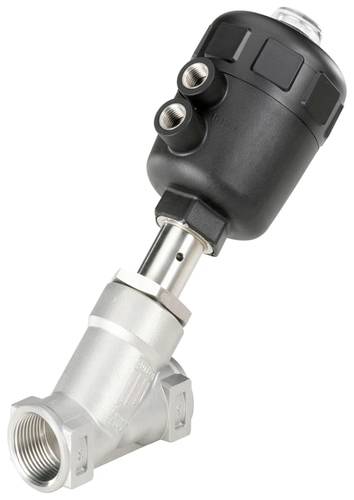

Bürkert Angled valve 2000 376760 16 bar (max) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Drive - Drive design: PA drive, VA threaded bush on control air connection
- Drive - drive size: DM 63 mm
- Mode of action - control function: Closed with spring force
- Material: Stainless steel
- Seal material PTFE
- Nominal width 40 mm
- Line connection NPT 1 1/2 sleeve
- Special feature: Flow over seat
- Missing Attributes: Approval according to the European Gas equipment regulation (EU) 2016/426, DVGW DIN EN 161 and DIN EN 16678, class A
- Medium temperature (degree C) (max): 150
- Ambient temperature (degree C) (max): 55
- Ambient temperature (degree C) (min): -10
- Pressure (bar) (max): 16
- Ways/positions: 2 ways / 2 positions
- Control pressure (min): 1.9
- Control pressure (max): 10
- KV VALUE (M*3/H): 35
- Control pressure required (bar): 5.8
- Product type
Angled valve
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
376760
- Max. operating pressure
16 bar
- Pressure range
16 bar (max)
- Pipe Ø
40 mm
- Control pressure (max.)
10 bar
- Control pressure (min.)
1.9 bar
- Type
2000
- Max. ambient temperature
55 °C
- Min. ambient temperature
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3047973 Bürkert Angled valve 2000 376760 16 bar (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047973 Bürkert Angled valve 2000 376760 16 bar (max) 1 pc(s)
Description
The externally controlled tilt valve consists of a pneumatically actuated piston drive and a 2-way valve housing. Depending on the ambient temperature, the drive is available in two different materials, PA and PPS. The proven self-adjusting spindle sealing ensures high tightness. The flow-oriented 2/2-way valve housing made of bronze or fine cast stainless steel allows high flow values. These maintenance-free and robust valves can be retrofitted with a comprehensive range of accessories for position indication, lift limitation or manual emergency operation.
