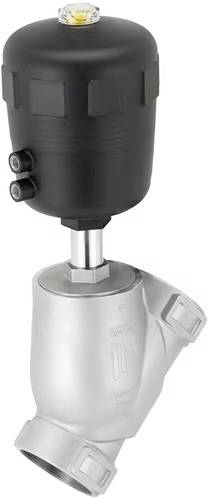

Bürkert Angled valve 2000-A-2-32,0-EE-VA-GM87-D-F * 178696 0 up to 14 bar 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
2/2-way angle valve pneum.be T.
- Stainless steel or cast iron housing with sleeve, clamp or welding connection
- Long life.
- High flow values
- Robust drives with modular accessories
Technical specifications
- Fluidic cable connection Number: 2
- Valve function Number switch positions: 2
- Control function: A - closed at rest (NC)
- Manual operation: No.
- Line connection 1 type: Inner thread
- Cable connection 1 Thread designation: 1 1/4
- Process/wire connection
- Line connection 1 Thread type G
- Valve housing material: Stainless steel
- Line connection 1 type: Inner thread
- Cable connection 1 Thread designation: 1 1/4
- Line connection 1 Thread type G
- NOMINAL PRESSURE (DIN EN 1333) PN 25
- Nominal pressure (DIN EN 1759): Class 150
- Min temperature Medium -10 °C
- Temperature Medium max. 185°C
- Min. Ambient temperature: 5°C.
- Ambient temperature max. 140 °C
- Flow: Under seat
- Valve control Type: Pneumatic
- Valve layout: Complete valve
- Vacuum version: No.
- Oxygen version: No.
- Mounting length 110 mm
- Product type
Angled valve
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
178696
- Max. operating pressure
14 bar
- Operating pressure (min.)
0 bar
- Pressure range
0 up to 14 bar
- Depth
110 mm
- Type
2000
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3048245 Bürkert Angled valve 2000-A-2-32,0-EE-VA-GM87-D-F * 178696 0 up to 14 bar 1 pc(s)
Description
The externally controlled angle valve consists of a pneumatically actuated piston drive and a 2-way valve housing. Depending on the ambient temperature, the drive is available in two different materials, PA and PPS. The proven self-adjusting spindle sealing ensures high tightness. The flow-friendly 2/2-way valve housing made of bronze or fine cast stainless steel enables high flow values. These maintenance-free and robust valves can be retrofitted with a comprehensive range of accessories for position indication, lift limitation or manual emergency operation.
