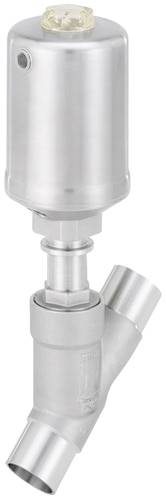

Bürkert Angled valve 2060 387604 16 bar (max) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Drive - drive version: VA-version
- Drive - drive size: DM 32 mm
- Mode of action - control function: Closed with spring force
- Material: Stainless steel
- Seal material PTFE
- Nominal width 10 mm
- Line connection G 3/8 sleeve
- Special feature: Suitable for use with foodstuffs, materials in contact with the medium are in accordance with EC Regulation 1935/2004/94, as stated in the manufacturer's declaration
- Medium temperature (degree C) (max): 180
- Ambient temperature (degree C) (max): 60
- Pressure (bar) (max): 16
- Ways/positions: 2 ways / 2 positions
- Arm/drive interface: Nipple thread M20x1.5 (standard DN10)
- Control air connection: Thread M5
- Control pressure (min): 5.5
- Control pressure (max): 10
- KV VALUE (M*3/H): 2.4
- Product type
Angled valve
- Manufacturer part #
387604
- Dim
(Ø) 32 mm
- Max. operating pressure
16 bar
- Pressure range
16 bar (max)
- (Ø)
32 mm
- Pipe Ø
10 mm
- Control pressure (max.)
10 bar
- Control pressure (min.)
5.5 bar
- Type
2060
- Max. ambient temperature
60 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3047992 Bürkert Angled valve 2060 387604 16 bar (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047992 Bürkert Angled valve 2060 387604 16 bar (max) 1 pc(s)
Description
The pneumatically actuated angle valve with stainless steel drive is suitable for use in the most demanding process environments. The proven self-adjusting spindle sealing ensures high leak tightness with simultaneous highest service life. The stainless steel drive was developed for demanding applications. High cleanability and stability are made possible by laser welding. With compressed exhaust air, the drive can be operated independently of the environment to achieve optimum service life and hygiene. High flows can be achieved with the optimized angular housing made of stainless steel. A wide range of accessories is available as part of the Bürkert process valve kit. All parts in contact with the media conform to EC Directive 1935/2004. Versions with FDA conformity are available on request and explosion-proof versions are also available.
This text is machine translated.
