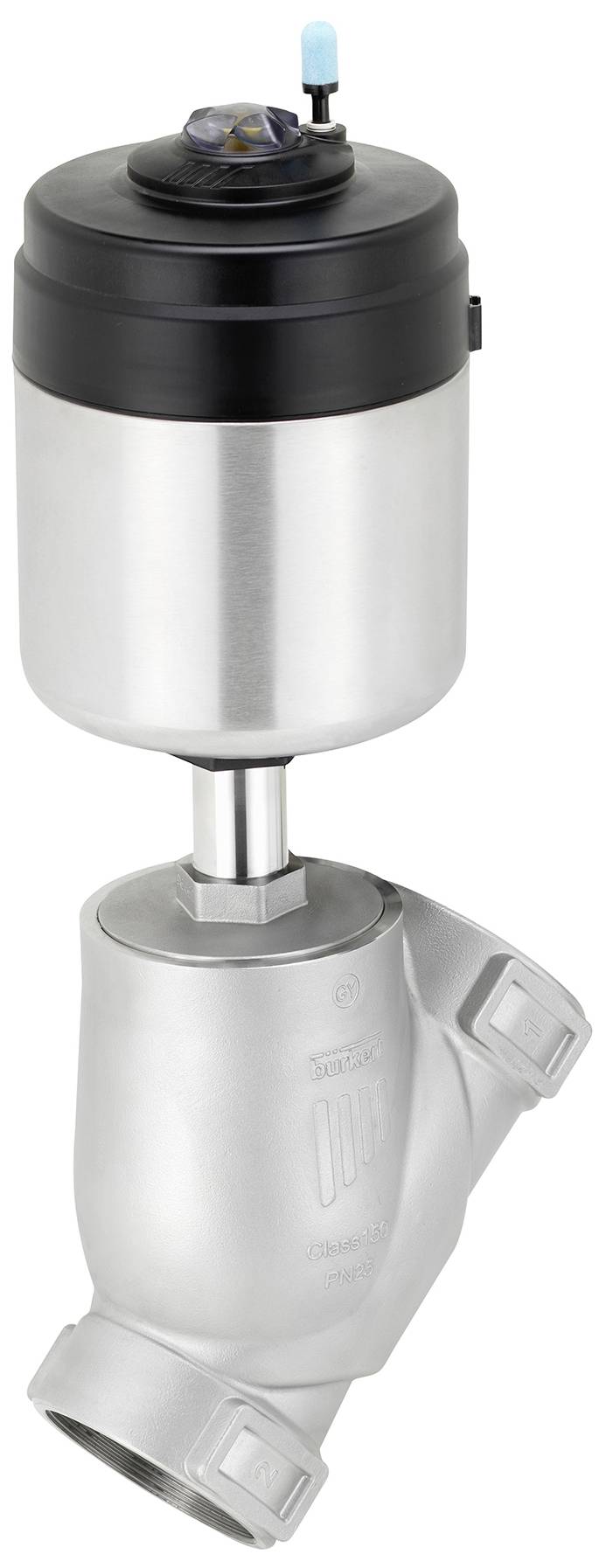

Bürkert Angled valve 2100 235508 0 up to 16 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Drive - Drive design: ELEMENT
- Drive - drive size: 70 mm
- Drive - Position query via magnetic piston: No.
- Drive - Drive Material Category: Plastics
- Drive - drive material: PPS (polyphenylene sulfide)
- Drive - O-ring between cover and bushing: No.
- Drive - Control air connection type: Internal thread
- Drive - Control air connection Thread type: G
- Drive - Control air connection diameter (inch): 1/8 inch
- Drive - control air connection Position: In line direction
- Drive - Control air connection material: Stainless steel
- Drive - Interface to drive: Metric
- Drive - drive increased chemical resistance: No.
- Drive - control cone: No.
- Drive - Control air connection 1 Pre-assembled: Not fitted
- Drive - Control air connection 2 Pre-assembled: Silencer 780779
- Drive - pendulum plate material: Stainless steel
- Drive - Pendulum plate: WITH
- Sealing Material - Piston Seal Material Category: Elastomers
- Sealing Material - Piston Seal Material: FKM (Fluoro Rubber)
- Sealing Material - Seat Seal Material Category: Plastics
- Seal material - Seat seal Material: PTFE (Polytetrafluorethylene)
- Sealing material - gasket housing material: Graphite
- Sealing material - Packed seal enclosed: No.
- Pressure & temperature - nominal pressure (DIN EN 1333): PN 25
- Pressure & Temperature - Temperature Medium min -10 °C.
- Pressure & Temperature - Temperature Medium max. 185 °C.
- Pressure & temperature - ambient temperature min: -10 °C.
- Pressure & temperature - temperature Surroundings max. 100 °C
- Pressure & temperature - nominal pressure at least 0 bar
- Pressure & temperature - nominal pressure max. 16 bar
- Pressure & Temperature - Control pressure at least 4.8 bar
- Pressure & Temperature - Control pressure max. 10 bar
- Pressure & temperature - rated pressure (DIN EN 1759): Class 150
- Pressure & Temperature - Vacuum control pressure: No.
- Device Properties - Product Sub-Group: Open/To Valves
- Equipment characteristics - installation length 90 mm
- Equipment characteristics - main valve operating principle: Angle seat valve
- Equipment properties - Valve control Type: Pneumatic
- Equipment characteristics - valve design: Complete valve
- Equipment characteristics - valve pipe housing production: Cast
- Equipment properties - Flow: Under seat
- Device properties - Vacuum version: No.
- Device Properties - Oxygen Type: No.
- Medium & calibration - CIP capable: Yes
- Medium & calibration - SIP-enabled: Yes
- Nominal width (kV value) - kV Water value: 18 m3/h.
- Nominal width (kV value) - housing nominal width: 25 mm
- Nominal width (kV value) - enclosure size (IN): 1 inches
- Nominal width (kV value) - seat nominal width: 25 mm
- Process/line connection – line connection 1 type: Internal thread
- Process/cable connection - cable connection 1 Thread name: 1
- Process/cable connection - cable connection 1 Thread type: G.
- Materials - Valve Housing Material Category: Metals
- Materials - valve housing material: Stainless steel
- Materials - Valve housing Internal surface machining: Unfinished
- Materials - Valve housing Surface finish external: Unmachined
- Materials - pipe material: Stainless steel
- Operating principle - fluid line connection Number: 2
- Operation - Valve function Number of switching positions: 2
- Operation - Manual operation: No.
- Operation - Control function: A - closed at rest (NC)
- Operation - Additional manual operation included: No.
- Approvals - Factory test certificate 3.1 attached: No.
- Type of approval: Material approved food
- Type of approval: Food (EC) 1935/2004 compliant according to manufacturer's declaration
- Product type
Angled valve
- Min. display range
0 bar
- Display range (max.)
16 bar
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
235508
- Max. operating pressure
16 bar
- Operating pressure (min.)
0 bar
- Pressure range
0 up to 16 bar
- Pipe Ø
25 mm
- Type
2100
- Max. media temperature
185 °C
- Media temperature (min.)
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3046808 Bürkert Angled valve 2100 235508 0 up to 16 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3046808 Bürkert Angled valve 2100 235508 0 up to 16 bar 1 pc(s)
Description
The angle seat valve type 2100 is specially optimized for decentralized process automation and meets all practical requirements even under difficult operating conditions. Its unique design allows easy integration of automation units in all levels, from the electrical/optical position feedback to the pneumatic control to the integrated fieldbus interface. Maximum service life and leak tightness are achieved by the tried and tested self-adjusting roof boot spindle pack.
The highly integrated system consisting of valve and automation unit is characterized by compactness and smooth surface in design, integrated control air ducts, degree of protection IP65/67, NEMA type 4X and high chemical resistance.
This text is machine translated.
The highly integrated system consisting of valve and automation unit is characterized by compactness and smooth surface in design, integrated control air ducts, degree of protection IP65/67, NEMA type 4X and high chemical resistance.
This text is machine translated.
