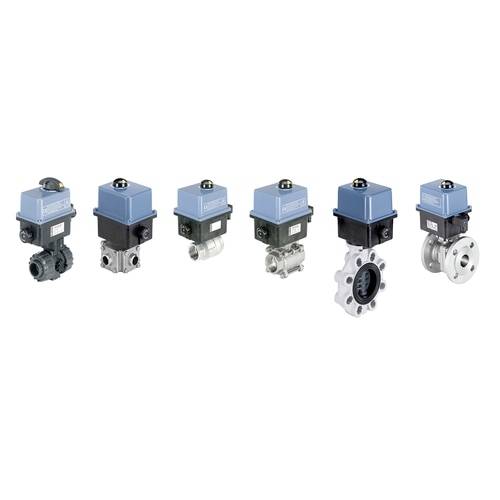

Image similar
Bürkert Ball valve actuator 226471 8804 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Ball valve with electr. Rotary drive
- High flow values
- Drive with adjustable limit switches
- Optical setting display
- Manual emergency operation as standard
Technical specifications
- Drive - Drive type: El. Rotary drive 3003
- Drive torque 35 Nm
- Device properties - setting time: 7 sec. / 90 °
- Material: Stainless steel
- Seal material PTFE
- Nominal width 25 mm
- Lead connection: Whitworth pipe thread sleeve 1 inch according to DIN EN 10226-1 (old DIN 2999)
- Special feature: Fitting supplier 350000
- Voltage 100-240V 50-60Hz / 100-350V DC
- Frequency: DC and AC (AC/DC)
- Ambient temperature (degree C) (max): 55
- Ambient temperature (degree C) (min): -10
- Control: Standard
- Line connection 1: Not present
- Ways/positions: 2 ways / 2 positions
- Valve type: Ball valve type 2651
- 2-way switch position
- Design: 2-position operation, with 2 additional End switches
- Product type
Ball valve actuator
- Manufacturer part #
226471
- Sealant
PTFE
- Nominal width
25 mm
- Max. ambient temperature
55 °C
- Min. ambient temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 3047692 Bürkert Ball valve actuator 226471 8804 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047692 Bürkert Ball valve actuator 226471 8804 1 pc(s)
Description
The engine ball valve Type 8804 consists of an electric rotary drive and a 2/2- or 3/2-way ball valve made of stainless steel. As 2-way variants, two- or three-part housing designs are available for various applications. The 3-way ball cocks are available with L- and T-holes. The electric motor-driven rotary drive is built compactly. It can also be used as a single device for operating other actuators (see data sheet type 3003). Heating resistors and torque limiting are standard. The casing is made of flame-retardant material, classified according to UL94 V0.
