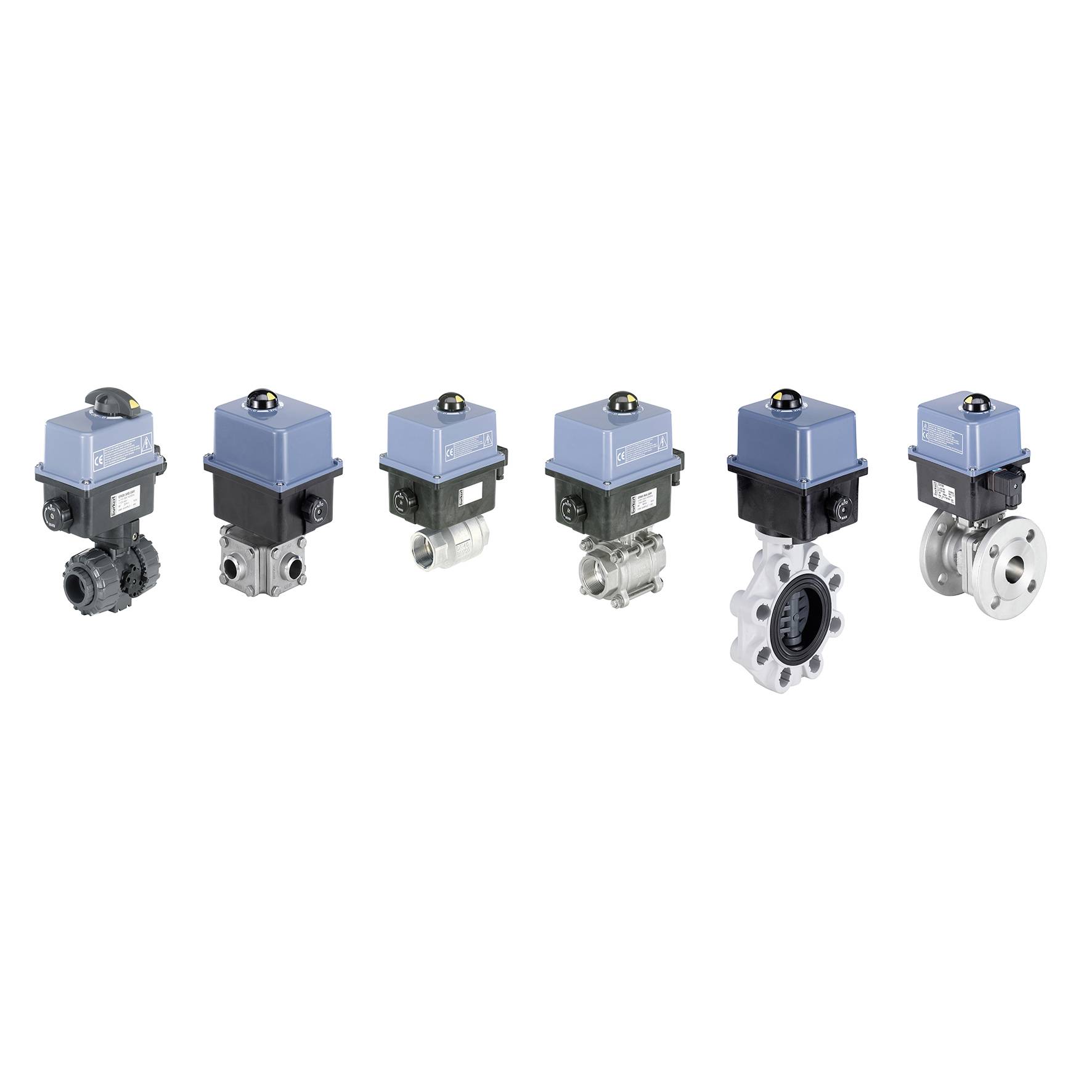

Image similar
Bürkert Ball valve actuator 226477 8804 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Ball valve with electr. Rotary drive
- High flow values
- Drive with adjustable limit switches
- Optical setting display
- Manual emergency operation as standard
Technical specifications
- Activation / feedback signal - limit position feedback number: 2 pieces
- Activation / feedback - position feedback function: Mechanical
- Drive - drive material: PA (polyamide)
- Drive - Drive type: 3003
- Drive - Angle of rotation: 90 Deg
- Drive - torque: 20 N m.
- Drive - Heating resistors: Yes
- Sealing material - parts in contact with medium Sealing material: PTFE (polytetrafluorethylene)
- Pressure & temperature - ambient temperature min: -10 °C.
- Pressure & temperature - temperature Surroundings max. 55 °C
- Inputs/outputs - output 1 type analogue Current: No feedback
- Inputs/outputs - output 1 type analogue voltage: No feedback
- Inputs/outputs - input 1 type analogue Voltage: No control
- Input / output - Input 1 type analog Current: No control
- Functions - Ball bore: Straight through hole
- Functions - Emergency reset: No.
- Functions - Potentiometer: No.
- Device Properties - Product Sub-Group: Up/To - Control Valves
- Device properties - setting time: 12 seconds
- Process/line connection – line connection 1 type: Internal thread
- Process/cable connection - cable connection 1 nominal width: DN 15
- Process/wire connection - cable connection 1 standard Rp (DIN EN 10226-1 (old DIN 2999))
- Process/line connection - fittings version: Standard
- Materials - ball material: Stainless steel 1.4401 (A182 - 316)
- Materials - Fitting Housing Material: Stainless Steel 1.4408 (A351 - CF8M)
- Operating principle - fluid line connection Number: 2
- Operation - Valve function Number of switching positions: 2
- Product type
Ball valve actuator
- Manufacturer part #
226477
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3047741 Bürkert Ball valve actuator 226477 8804 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047741 Bürkert Ball valve actuator 226477 8804 1 pc(s)
Description
The engine ball valve Type 8804 consists of an electric rotary drive and a 2/2- or 3/2-way ball valve made of stainless steel. As 2-way variants, two- or three-part housing designs are available for various applications. The 3-way ball cocks are available with L- and T-holes. The electric motor-driven rotary drive is built compactly. It can also be used as a single device for operating other actuators (see data sheet type 3003). Heating resistors and torque limiting are standard. The casing is made of flame-retardant material, classified according to UL94 V0.
