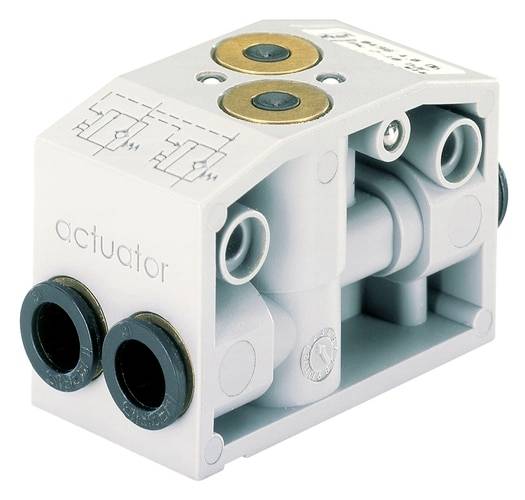

Bürkert Check valve 0498 167126 Suitable for pipe diameter: 6 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Nominal width 4 mm
- Line connection: Hose plug connection hose outer diameter 6mm
- Pressure (bar) (max): 10
- Pressure (bar) (min): 2
- Max. operating pressure
10 bar
- Min. operating pressure
2 bar
- Thread size
4 mm
- Type
0498
- Manufacturer part #
167126
- Suitable for pipe Ø
6 mm
- Tube diameter
4 mm
- UKCA
not relevant
- Product type
Check valve
Documents & Downloads
Datasheet
Datasheet 3047652 Bürkert Check valve 0498 167126 Suitable for pipe diameter: 6 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047652 Bürkert Check valve 0498 167126 Suitable for pipe diameter: 6 mm 1 pc(s)
Description
Two lockable check valves are integrated in the 0498 type. If this unlockable double check valve is combined with two 3/2-way valves, a 5/3-way function with lock center position (L mode of operation) can be implemented.
