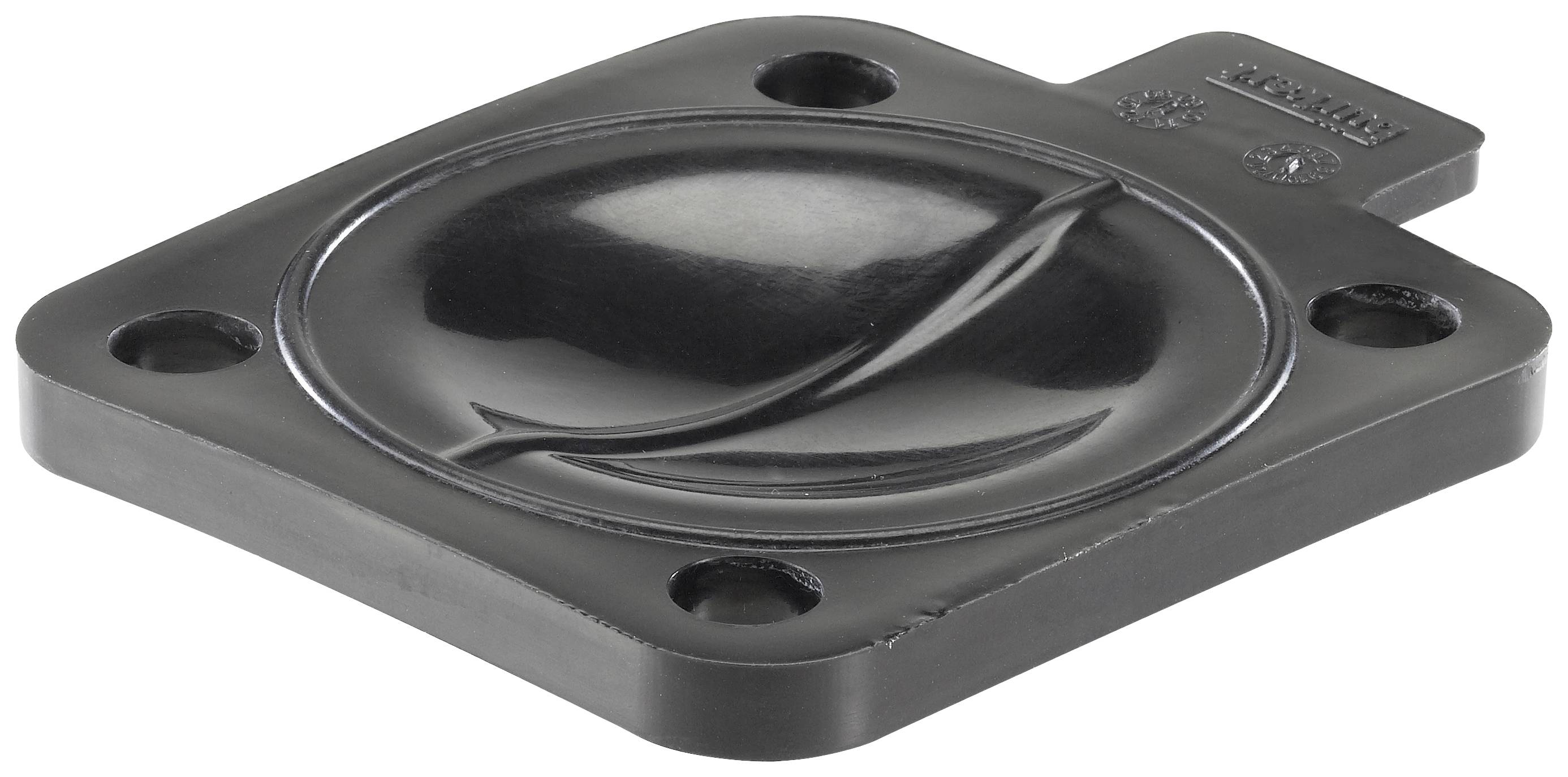

Black plastic component with a rounded top surface and four mounting holes at the corners, potentially a technical part.

Image similar

Black plastic component with a rounded top surface and four mounting holes at the corners, potentially a technical part.

Image similar

Bürkert

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Drive - membrane coupling: Button
Sealing material - membrane material: EPDM (Ethylene-Propylene-Diene-Rubber)
Sealing material - material code: EPDM E04
Pressure & Temperature - Temperature Medium min -10 °C.
Pressure & Temperature - Temperature Medium max. 143 °C.
Device characteristics - membrane size: 15

Product type: Diaphragm

Manufacturer part #: 688422

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3047851 Bürkert Diaphragm 688422 SV02 SV02 1 pc(s)
