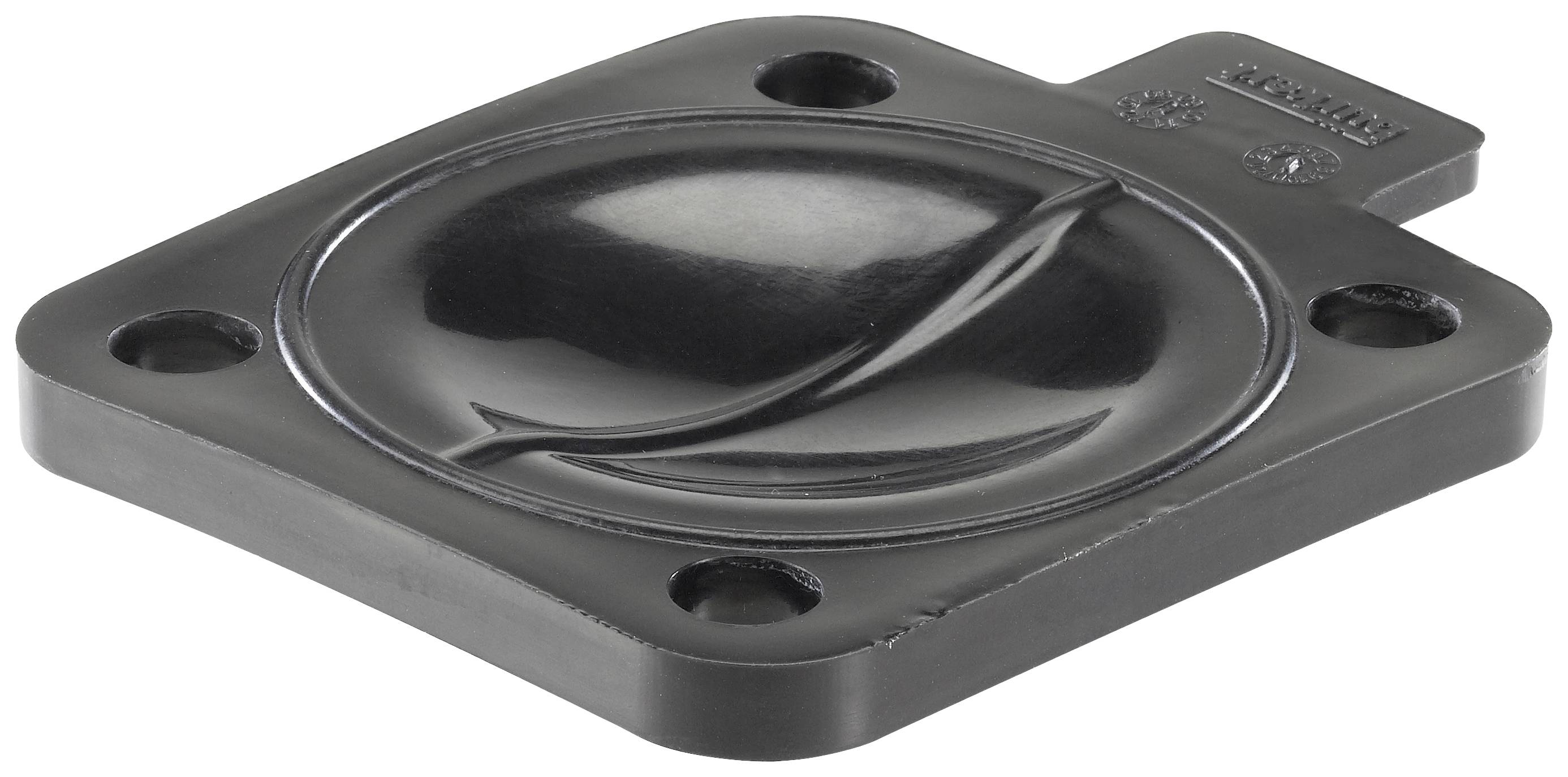

A black, square component with a curved surface and four holes in the corners, likely a valve or sealing part.

Image similar

A black, square component with a curved surface and four holes in the corners, likely a valve or sealing part.

Image similar

Bürkert

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Drive - diaphragm coupling: Thread
Sealing material - membrane material: EPDM (Ethylene-Propylene-Diene-Rubber)
Sealing material - material code: EPDM E04
Pressure & Temperature - Temperature Medium min -10 °C.
Pressure & Temperature - Temperature Medium max. 143 °C.
Device characteristics - membrane size: 25

Product type: Diaphragm

Manufacturer part #: 688424

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3047805 Bürkert Diaphragm 688424 SV02 SV02 1 pc(s)
