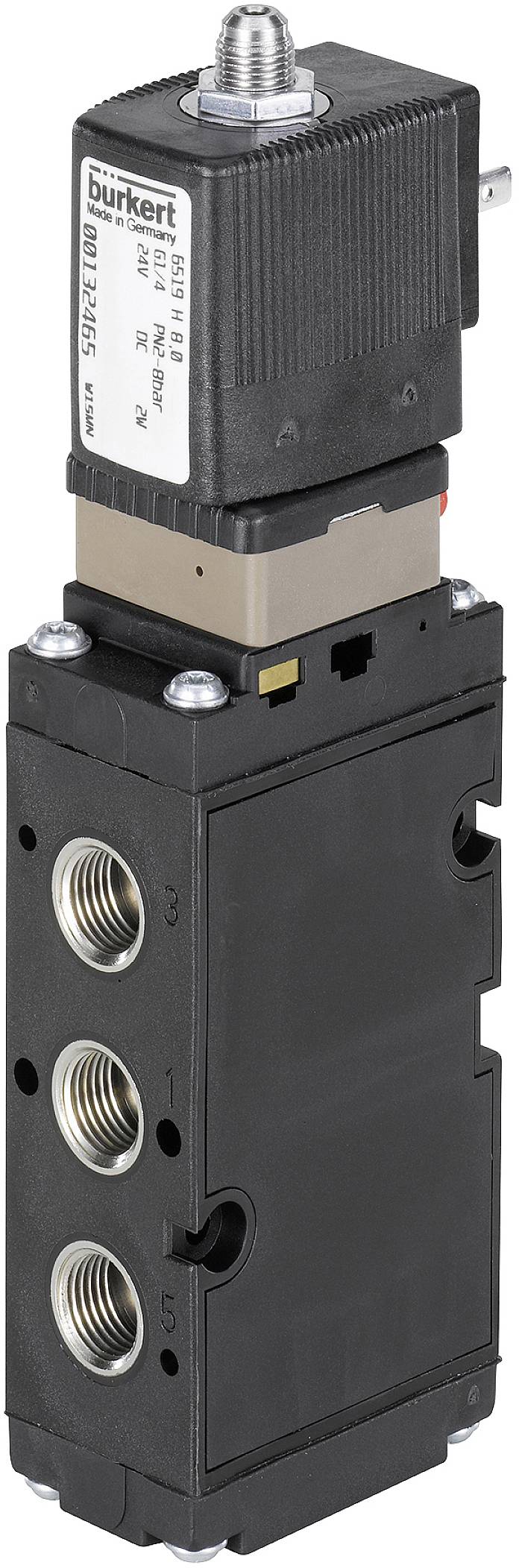

Bürkert Directly actuated pneumatic valve 20000925 6519 9 V DC G 1/4 Direct action 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Coil size 40 mm
- Product type
Directly actuated pneumatic valve
- Operating voltage
9 V DC
- Enclosure material
PA
- Connection
G 1/4
- Media temperature (range)
-10 up to 50 °C
- Manufacturer part #
20000925
- Operation
electrical
- Max. flow
1,300 l/min
- Function
5/2-way
- Max. media temperature
50 °C
- Media temperature (min.)
-10 °C
- Medium
Gases
Water
- Features
P port connector (G1/4)
IP65
- Operating principle
Direct action
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2482757 Bürkert Directly actuated pneumatic valve 20000925 6519 9 V DC G 1/4 Direct action 1 pc(s)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
