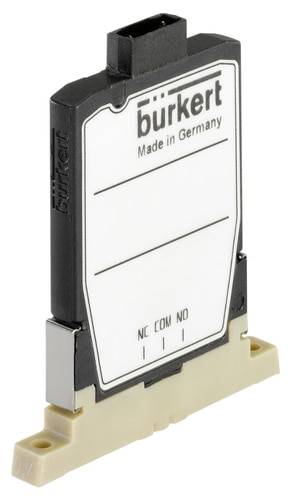

Bürkert Directly actuated valve 182284 6650 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Miniaturisiertes media separate solenoid valve for analysis technology
- Only 4.5 mm station Dimensions
- Media separately, for aggressive media
- Direct-acting
- Vacuum up to 7 bar
- Fast switching.
Technical specifications
- Nominal width 0.4 mm
- Line connection flange
- Kv-Wert 0.004 m³/h
- Vacuum Pressure range up to 7 bar
- Max. Differential pressure 7 bar
- Battery voltage 24 V
- Medium temperature +15 to +50 °C
- Ambient temperature +10 to +50 °C
- Internal Volume approx. 30 µl
- Nominal power 5.7 W pick-up power (5 ms), 0.7 W holding power
- Switching frequency: max. 80 Hz
- Switching time:< 5 ms (ISO 12238)
- Product type
Directly actuated valve
- Operating voltage
24 V DC
- Max. operating pressure
7 bar
- Media temperature (range)
+15 up to +50 °C
- Manufacturer part #
182284
- Operating pressure (min.)
-1 bar
- Weight
0.013 kg
- Max. media temperature
+50 °C
- Media temperature (min.)
+15 °C
- Length
38 mm
- Max. ambient temperature
+50 °C
- Min. ambient temperature
+10 °C
Documents & Downloads
Datasheet
Datasheet 625768 Bürkert Directly actuated valve 182284 6650 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 625768 Bürkert Directly actuated valve 182284 6650 24 V DC 1 pc(s)
Description
The type 6650 sets a new standard with the low station dimensions of 4.5 mm in the miniaturisation media separate solenoid valves. The consistently optimized design enables reproducible and precise dosing, a good rinsing and is particularly suitable, thanks to the high-quality materials for use of aggressive chemicals. It is ideally suited for applications where the highest fluid services even in the smallest room is required.
This text is machine translated.
This text is machine translated.
Features
- 2/2-way folding anchor solenoid valve
- Closed without current
- Housing material PEEK
- Sealing material FFKM (Simriz)
- Media: resistant to neutral and aggressive liquids and gases
- Voltage tolerance: ± 10%
- Nominal operating mode: continuous operation 100% duty cycle with power reduction electronics
- Protection class IP 65
- Electrical connection: plug with strands and integrated power Auto-talk electronics or plug with wire
- Any installation position, in Apposition uniform polarity
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
