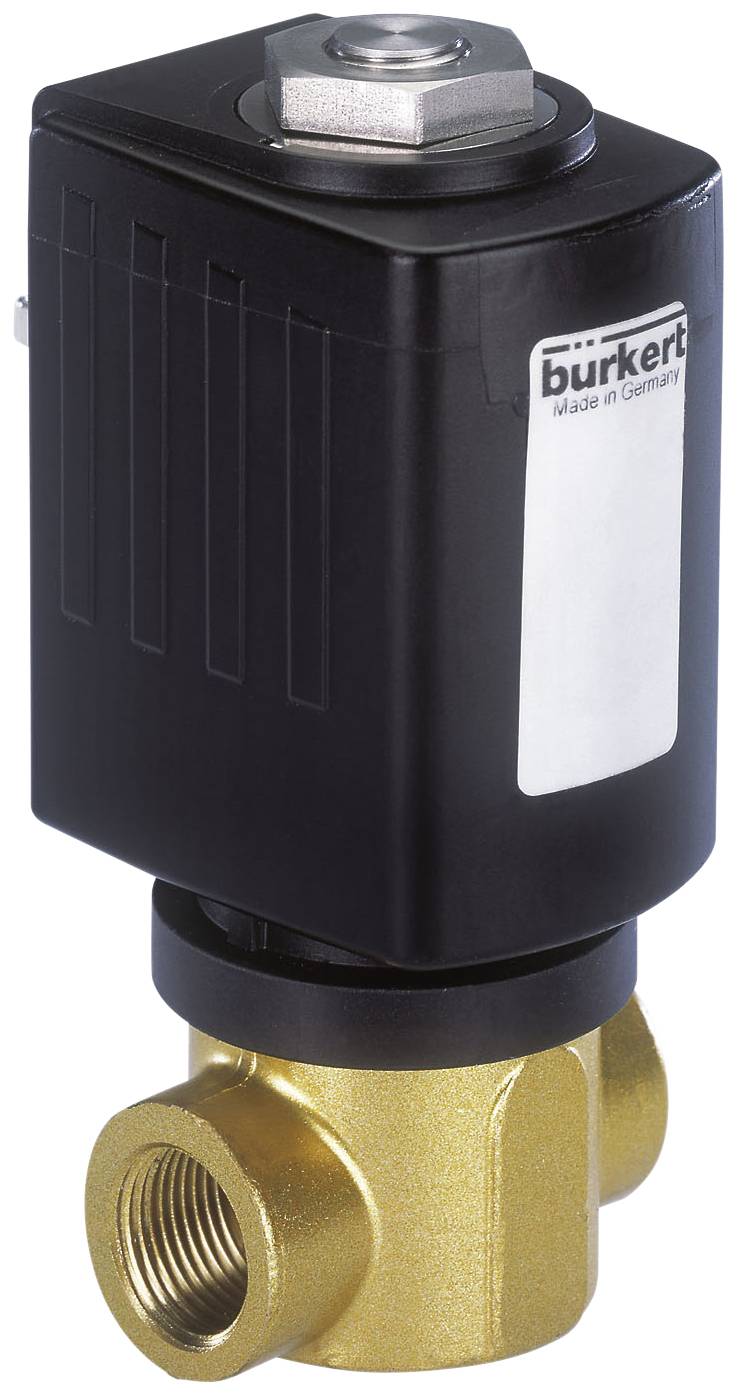

Bürkert Directly actuated valve 228503 6027 Kompakt 24 V AC G1/2 sleeve Nominal width (details) 8 mm Direct action 1 pc(
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
2/2-way compact solenoid valve
- Compact design
- Direct-acting
- FKM seal as standard
- Clip-on coil, 4 x 90°
- Suitable for technical vacuum
Technical specifications
- Nominal width 8.0 mm
- Line connection G 1/2"
- Kv-Wert 1.6 m³/h
- Pressure range 0 - 3 bar
- Voltage 024 V/50 Hz
- Medium temperature -10 °C to +140 °C
- Ambient temperature -10 to +55 °C
- Viscosity max. 21 mm²/s
- Opening time 10 - 20 ms
- Closing time 20 - 30 ms
- Electrical Power consumption 105 VA suit, 37 VA operation (heat coil) 16W
- Product type
Directly actuated valve
- Operating voltage
24 V AC
- Max. operating pressure
3 bar
- Enclosure material
Brass
- Connection
G1/2 sleeve
- Operating temperature
-10 °C (min)
- Media temperature (range)
-10 up to +100 °C
- Manufacturer part #
228503
- Operating pressure (min.)
0 bar
- Min. operating temperature
-10 °C
- Sealant
FKM
- Function
2/2-way
- Weight
0.840 kg
- Max. media temperature
+100 °C
- Media temperature (min.)
-10 °C
- Medium
Inert substances
- Nominal width
8 mm
- Features
Sleeve
- Length
55 mm
IP65
- Max. ambient temperature
+55 °C
- Min. ambient temperature
-10 °C
- Operating principle
Direct action
- KV value
26.67 l/min
- Depth
84 mm
Documents & Downloads
Datasheet
Datasheet 625685 Bürkert Directly actuated valve 228503 6027 Kompakt 24 V AC G1/2 sleeve Nominal width (details) 8 mm Direct action 1 pc(
User & Safety Instructions
User & Safety Instructions 625685 Bürkert Directly actuated valve 228503 6027 Kompakt 24 V AC G1/2 sleeve Nominal width (details) 8 mm Direct action 1 pc(
Description
The direct acting solenoid valve is used to disable, dosing, filling and venting. The clip-on magnet system has a modular design. The coil can be rotated by 360°.
This text is machine translated.
This text is machine translated.
Features
- 2/2-way compact solenoid valve
- In rest position open
- Housing Brass material
- Sealing material FKM
- Media: vacuum, inert gases and liquids (e.g. Compressed air, water, hydraulic oil)
- Coil Material Epoxy (Class H)
- Voltage tolerance: ± 10%
- Nominal operating mode: continuous operation 100% duty cycle
- IP65 degree of protection with device socket
- Electrical connection to DIN EN 175301-803 shape A (DIN 43650)
- Any installation position, preferably drive upwards
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
