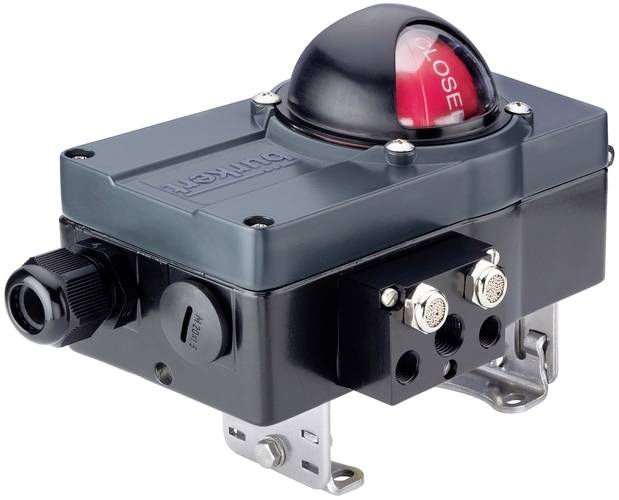

Bürkert Feedback 773140 1061 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Control / Feedback - End position feedback Type: Up / Down
- Control / Feedback - Mounting console Hole pattern: 80x30 & 130x30 mm (adjustable)
- Control / Feedback - Mounting Console Drive shaft height: 20 & 30 mm (adjustable)
- Drive - Control air connection type: Internal thread
- Drive - Control air connection Thread type: G
- Drive - Control air connection diameter (inch): 1/4 inch supply air / 1/8 inch exhaust air
- Drive - position display: Optical
- Sealing material - sealing housing/cover material: PUR
- Electrical connection - Electrical connection Type: Screw connection M20
- Device properties - Product sub-group: Control head / Feedback unit
- Device features - housing: Yes
- Protection class IP rating (max. for suitable connection) IP65
- Sensor type: Mechanical
- Voltage - switching capacity 4A, 230V
- Materials - Wave Material: Plastic
- Materials - mounting console Material: Stainless steel
- Product type
Feedback
- Manufacturer part #
773140
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3047638 Bürkert Feedback 773140 1061 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047638 Bürkert Feedback 773140 1061 1 pc(s)
Description
Type 1061 combines the functions of a position feedback signal and a solenoid valve in a box. In addition, it can be Ideal combined with the pneumatic swivel drives of types 2051 and 2052 (or with the systems of type 8805).
Type 1061 is available with various variants of limit switches (micro switches, inductive sensors) and solenoid valves (3/2-way, 5/2-way as well as without solenoid valve). ATEX versions as well as variants with ASi fieldbus connection are also available. Due to the numerous variants, requirements of different applications and processes can be met.
This text is machine translated.
Type 1061 is available with various variants of limit switches (micro switches, inductive sensors) and solenoid valves (3/2-way, 5/2-way as well as without solenoid valve). ATEX versions as well as variants with ASi fieldbus connection are also available. Due to the numerous variants, requirements of different applications and processes can be met.
