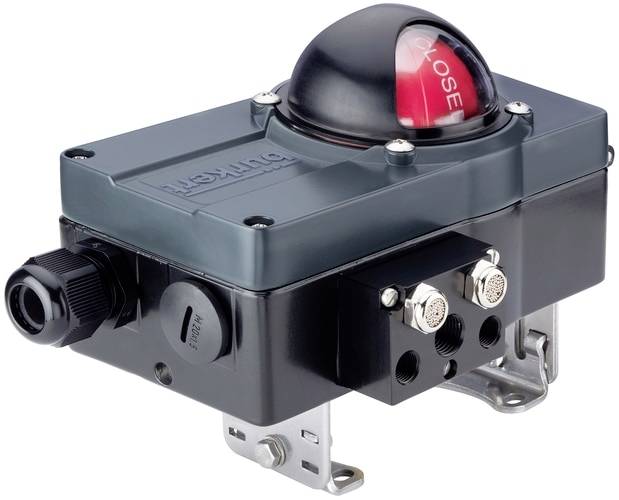

Bürkert Feedback 773152 1061 External thread M20 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Control / Feedback - End position feedback Type: Up / Down
- Control / Feedback - Mounting console Hole pattern: 80x30 & 130x30 mm (adjustable)
- Control / Feedback - Mounting Console Drive shaft height: 20 & 30 mm (adjustable)
- Drive - position display: Optical
- Sealing material - sealing housing/cover material: PUR
- Electrical connection - Electrical connection Type: Screw connection M20
- Device properties - Product sub-group: Control head / Feedback unit
- Device features - housing: Yes
- Protection class IP rating (max. for suitable connection) IP65
- Sensor - Sensor Type: Inductive
- Materials - Wave Material: Plastic
- Materials - mounting console Material: Stainless steel
- Product type
Feedback
- External thread
M20
- Manufacturer part #
773152
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3047601 Bürkert Feedback 773152 1061 External thread M20 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3047601 Bürkert Feedback 773152 1061 External thread M20 1 pc(s)
Description
Type 1061 combines the functions of a position feedback signal and a solenoid valve in a box. In addition, it can be Ideal combined with the pneumatic swivel drives of types 2051 and 2052 (or with the systems of type 8805).
Type 1061 is available with various variants of limit switches (micro switches, inductive sensors) and solenoid valves (3/2-way, 5/2-way as well as without solenoid valve). ATEX versions as well as variants with ASi fieldbus connection are also available. Due to the numerous variants, requirements of different applications and processes can be met.
This text is machine translated.
Type 1061 is available with various variants of limit switches (micro switches, inductive sensors) and solenoid valves (3/2-way, 5/2-way as well as without solenoid valve). ATEX versions as well as variants with ASi fieldbus connection are also available. Due to the numerous variants, requirements of different applications and processes can be met.
This text is machine translated.
